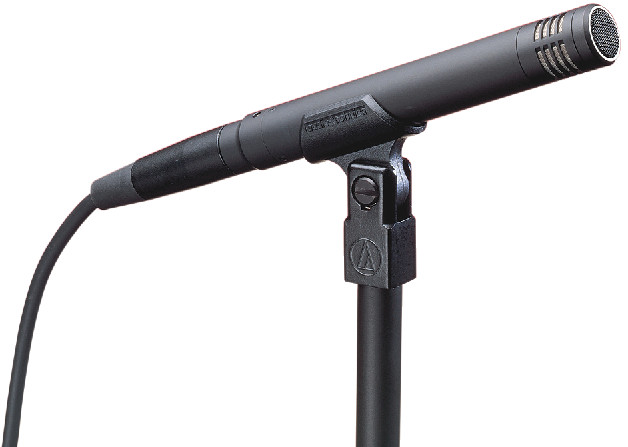

Audio-Technica AT4041 Small-Diaphragm Cardioid Condenser Microphone

OUR PART #: AT4041 MFR #: AT4041

Copied to clipboard

Engineered to meet the most critical acoustic requirements of professional recording, broadcast and live sound capture... ...Read more

Audio-Technica AT4041 Small-Diaphragm Cardioid Condenser Microphone Image 1
Audio-Technica AT4041 Small-Diaphragm Cardioid Condenser Microphone Image 2
IhuURBsFrHs?rel=0
3 Videos
Audio-Technica AT4041 Small-Diaphragm Cardioid Condenser Microphone
Our Price: $299.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Engineered to meet the most critical acoustic requirements of professional recording, broadcast and live sound capture, the AT4041 is a premium-quality electret cardioid condenser studio microphone. It features a smooth, extended frequency response with a slight rise in the high-frequency region and transformerless output to accomodate very high sound pressure levels (SPLs). It provides a unique combination of audio excellence combined with moderate cost, and is a rugged mic housed in a case of turned brass with black chrome plating, offering both durability and low reflectivity. The mic element's back plate holds a fixed charge and has been aged to provide energy stabilization. In addition, the surface of this back plate is precision-milled to assure maximum charge linearity, resulting in a reduction in both frequency response peaks and diaphragm break-up distortion.

Applications

Ideal for:

Drum overheads • Acoustic guitar • Piano • Horns • Under snare pickup

Includes

  • AT4041 microphone
  • AT8405a stand clamp for ⅝"-27 threaded stands
  • AT8159 windscreen
  • Protective carrying case

Features

  • Smooth, extended frequency response with a slight rise occurring in the high-frequency region
  • Low-mass diaphragm improves transient response, increases response bandwidth and reduces handling and mechanical noise transfer
  • Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
  • State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards
  • Switchable hi-pass filter and rugged turned-brass microphone housing
  • Custom shock-mount provides superior isolation

Specifications

  • Element: Fixed-charge back plate, permanently-polarized condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 20 - 20,000Hz
  • Low Frequency Roll-Off: 80Hz, 12dB/octave
  • Open Circuit Sensitivity: -36dB (15.8mV) re 1V @ 1Pa
  • Impedance: 100Ω
  • Maximum Input Sound Level: 145dB SPL, 1kHz @ 1% T.H.D.
  • Dynamice Range (Typical): 121dB, 1kHz @ Max SPL
  • Signal-to-Noise Ratio: 70dB, 1kHz @ 1Pa
  • Phantom Power Requirements: 48VDC, 3.2mA typical
  • Switches: Flat, roll-off
  • Weight: 4.2oz. (120g)
  • Dimensions (L x body diameter): 6.28" x 0.83" (159.5 x 21mm) body diameter
  • Output Connector: Integral 3-pin XLRM-type
  • Note: further information can be found within the items located under the "Documentation" tab above.
