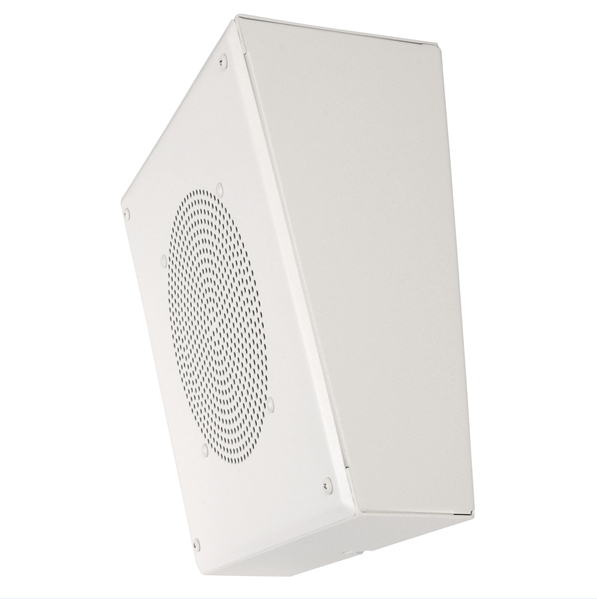

Surface Mount Speaker Assembly


Our Price: $58.76
List Price: $85.66
You save 31%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The System 1 and System 2 are designed for areas that require a surface mounted speaker system. Typical usage includes schools and industrial applications. The assemblies easily mount to rafters, walls or posts. Both units feature all steel folded and welded construction. The integral full range speaker provides excellent reproduction of paging and background music. Both systems are finished in durable baked white powder epoxy.

Quam System 2 Features:

  • All-steel construction
  • Durable white baked epoxy finish
  • Simple installation

Quam System 2 Specifications:

  • Speaker: 8C5PAX
  • Type: 8” P.C.
  • Freq. Response: 65Hz-17kHz
  • Power Rating: 8 Watts
  • Sensitivity: 98 dB SPL (1w/1m)
  • Magnet Size: 4.8 oz.
  • Voice Coil: 8 Ohm
  • Cone Type: Treated Paper
  • Transformer: TBLU
  • Power Rating: 5 Watts
  • Primary Volt: 25/70
  • Primary Taps: 5/16, 5/8, 1-1/4, 2-1/2, 5 Watts
  • Terminations: (9) 6” leads, color coded
  • Grill: BS8W
  • Finish: Baked White Powder Epoxy
  • Material: 22-gauge Steel
  • Enclosure: SE2WVP
  • Material: .060” Cold Rolled Steel
  • Finish: Baked White Powder Epoxy
  • Mounting Holes: 10” square
  • Face: Tapered
  • Weight: 9 lbs.
