QSC CX204V 4-Channel Power Amplifier, 200W Per Channel at 70V

OUR PART #: CX204V MFR #: CX204V

Copied to clipboard

The QSC CX204V 4-channel 70V CX amplifier provides four channels in only two rack spaces - without compromising on power. ...Read more

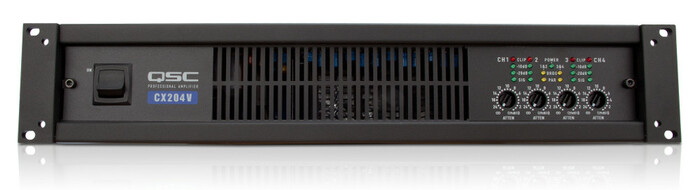

QSC CX204V 4-Channel Power Amplifier, 200W Per Channel At 70V Image 1

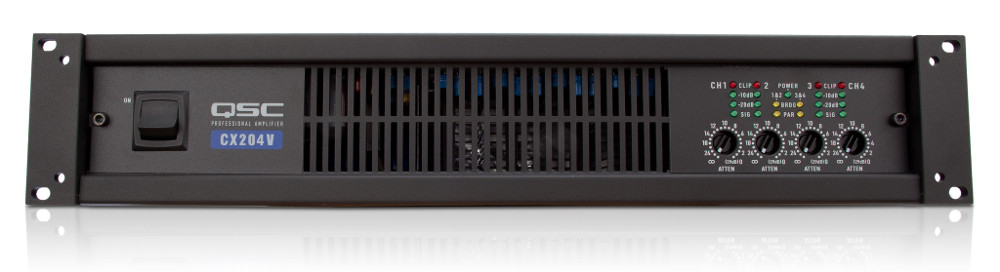

QSC CX204V 4-Channel Power Amplifier, 200W Per Channel At 70V Image 2
QSC CX204V 4-Channel Power Amplifier, 200W Per Channel At 70V
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The QSC CX204V 4-channel 70V CX amplifier provides four channels in only two rack spaces - without compromising on power. With high output power, versatile loading options, high thermal capacity and unmatched reliability, the CX Series is the perfect solution to any permanently installed sound system. With PowerWave technology, CX amplifiers take your sound to a whole new level. Not only does it give you tighter bass and clean transparent highs, PowerWave also cuts waste heat, boosts reliability and gets rid of unwanted noise and hum. PowerWave is a revolutionary switching power supply technology that provides ample current to the audio power circuitry by charging the supply rails 230,000 times a second through an ultra-low impedance circuit. So unlike amplifiers that use conventional supplies, the audio signal is never starved prematurely and remains crisp and clean.

Features

  • 200W per channel 70 V power amplifier
  • Channel pairs bridgeable for maximum flexibility
  • 1 dB detented gain controls
  • HD-15 DataPort connector for QSControl computer control
  • Comprehensive front-panel status monitoring

Specifications

  • Power Ratings:
    • 70 V, Stereo Mode, All Channels Driven, 20 Hz - 20 kHz, 0.05% THD: 200W
    • 70 V, Stereo Mode, All Channels Driven, 1 kHz, 0.05% THD: 220W
    • 70 V, Stereo Mode, All Channels Driven, 1 kHz, 1% THD: 300W
    • 140 V, Bridged Mono Mode, 20 Hz - 20 kHz, 0.05% THD: 400W
    • 140 V, Bridged Mono Mode, 1 kHz, 0.05% THD: 440W
    • 140 V, Bridged Mono Mode, 1 kHz, 1% THD: 600W
  • Input Impedance: 6 kΩ unbalanced, 12 kΩ balanced
  • Input Connectors, each channel: 3 position Euro-style detachable barrier block, Ch 1, 2, 3 and 4
  • DataPort: HD-15 Connector, Ch 1+2, 3+4
  • Output Connectors, each channel: Six-position barrier strip with monitor connections, Ch 1+2, Ch 3+4
  • Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic and RF protection. Stable into reactive or mismatched loads
  • Load Protection: On/Off muting, DC-fault power supply shutdown
  • Dimensions (W x H x D): 19" x 3.5" x 14" (2 U)
  • Weight: 21 lbs. net, 27 lbs. shipping
