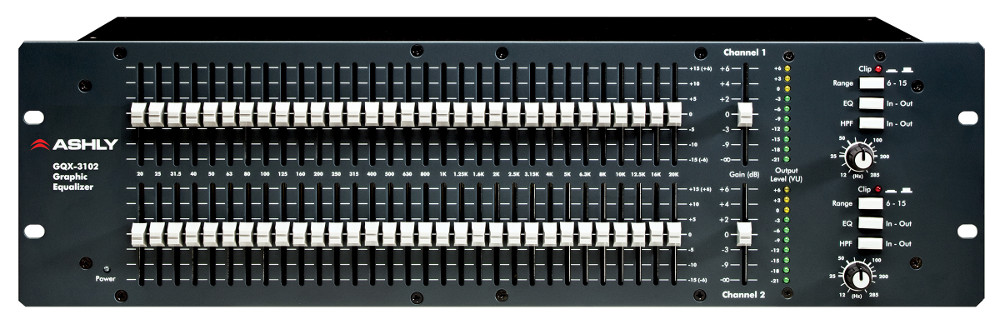

Ashly GQX-3102 Stereo 31-Band Graphic Equalizer With 45mm Faders, 3U Image 1
Ashly GQX-3102 Stereo 31-Band Graphic Equalizer With 45mm Faders, 3U Image 2
Ashly GQX-3102 Stereo 31-Band Graphic Equalizer With 45mm Faders, 3U
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Ashly GQX-3102 features 2-channels of 31-band 1/3-octave EQ, tunable hi-pass filter circuit, switch-selectable cut or boost of either 6dB or 15dB and 10-segment, 2-color LED meter displays, and clip LEDs. The full-throw 45mm faders have a metal-shaft with the center detented position utilized as an “on/off” switch for that filter to minimize noise levels when the filter is not in use.

Ashly's graphic EQs utilize Wein-Bridge filters using precision components and Ashly's specially designed summing amplifiers provide extremely accurate response, low noise, negligible distortion, and excellent immunity to magnetic fields.

Ashly GQX-3102 Features:

  • Ashly Differentiator: Tunable Hi-Pass Filter (HPF)
  • 45mm, detented metal shaft faders
  • 12dB/octave, tunable hi-pass filter
  • True Constant “Q” design
  • Tight tolerance components for precise < /= 3% filter accuracy
  • Precision Wein-Bridge filters
  • Switchable boost/cut range of +/- 6 or +/- 15dB
  • 10-position, 2-color LED level meter
  • Peak LED indicators
  • Balanced inputs, Servo-balanced outputs
  • XLR, TRS and Euroblock connections
  • Universal 100–240VAC internal power supply
  • Rider-friendly
  • Safety/Compliance: cTUVus, CE, FCC, RoHS

Ashly GQX-3102 Specifications:

  • Frequency Response: 20 Hz – 20 kHz, +/-0.25dB
  • THD: < .01% @ +20dBu
  • IM Distortion (SMPTE): < .01% @ +20dBu
  • Output Hum & Noise: -90dBu, Unweighted
  • Channel Separation: >95dB @ 1kHz
  • Gain Control: -inf. to +6dB
  • Input:
    • Type: Active-Balanced
    • Impedance: 20k Ohms
    • Max Level: +23dBu
    • Connectors: 1/4” (TRS), XLR, Euroblock
  • Output:
    • Type: Servo-Balanced
    • Source Impedance: 200 Ohms
    • Min Load Impedance: 600 Ohms
    • Max Level: +23dBu
    • Connectors: 1/4” (TRS), XLR, Euroblock
  • Filters:
    • Type: Constant Q / Wein-Bridge
    • Number: 2 x 31
    • Bandwidth: 1/3 Octave
    • Tolerance: +/- 3%
    • Range: +/- 6dB, +/- 15dB (Switchable)
    • Subsonic Filter: 12dB/Octave @ 14 – 280Hz
  • Weights & Dimensions:
    • Dimensions (WxHxD): 19” x 5.25” x 8” (483mm x 133mm x 203mm)
    • Unit Weight: 12.7lbs (5.8kg)
    • Shipping Weight: 16lbs (8kg)
  • Power Requirements:
    • Nominal Voltage: 100–240VAC (50–60Hz)
    • Minimal Voltage: 85VAC, 30W
