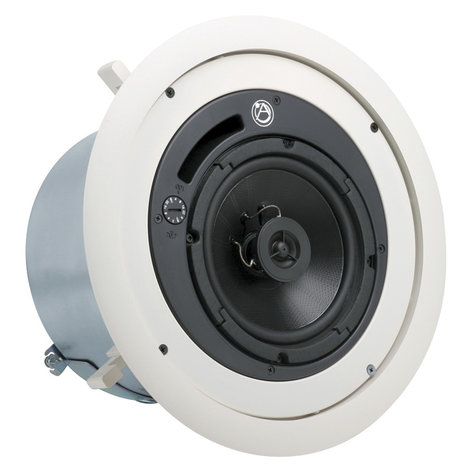

Atlas Sound FAP62T
6" 30W 70V Ceiling Speaker


The Atlas Sound FAP62T combines superior coaxial loudspeaker performance with even dispersion and easy installation.
Learn More
Our Price: $109.99
List Price: $135.99
You save 19%!
Write the first review.

This product must be purchased in multiples of 2

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Atlas Sound FAP62T
In Stock
Similar Products

The Atlas Sound FAP62T combines superior coaxial loudspeaker performance with even dispersion and easy installation. A low profile enclosure and wide coverage make the FAP62T a perfect choice for low ceilings. The FAP62T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP62T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

The FAP62T’s 110° dispersion angle can reduce the number of loudspeakers necessary to achieve coverage in distributed systems with low ceilings.

The loudspeaker component matches the performance of the legendary Atlas Sound FA136 driver. High quality construction 1" voice coil 6" coaxial cone type driver includes polypropylene cone with a butyl rubber surround. The19mm coaxially mounted tweeter is constructed of PEI. A high sensitivity of 88dB average (92dB peak) means less power may be required to achieve the desired SPL. This loudspeaker is factory assembled to an optimally tuned & ported deep drawn enclosure and includes a specially designed 32 watt low saturation 70.7V/100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This switch also includes a transformer bypass setting for 8 ohm direct coupled operation.

Atlas Sound FAP62T Features:

  • Extended low frequency response from the 285 cubic inch optimally tuned and ported deep drawn galvanized steel enclosure
  • Easy installation in drop tile or sheetrock ceilingsvia C-ring/V-rail tile bridge and "dog leg" mounting system(Included)
  • Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
  • Unique "trap door" input section allows for through conduit runs with rigid or flex conduit
  • 4 Pole detachable "phoenix" style connector allows easy pre-wiring and is convenient for daisy chaining additional Strategy full range speakers or subwoofers
  • "Press fit" grilles blend better into contemporary architecture
  • Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintan low frequency response while providing increased output for higher SPL applications
  • UL Listing Pending

Atlas Sound FAP62T Specifications:

  • Speaker Type: Coaxial
  • Power Taps: 2, 4, 8, 16, 32 Watts & 8 Ohms
  • Frequency Response: 63Hz-20kHz
  • Dispersion: 110°
  • Sensitivity: 88dB Average
  • Depth: 8-1/2"
  • Diameter: 12-1/2"
Ceiling Speaker Trim Ring, for FAP62T, New Construction Drywall
Atlas Sound FAP62TR Ceiling Speaker Trim Ring, for FAP62T, New Construction Drywall
Use the Atlas Sound FAP62-TR for new construction drywall ceiling applications. This unit provides a marked location for drywall installers to cut around, essentially reserving the desired location in the ceiling until final installation ...
24.99 31.99 22

Usually ships in 7-14 business days.
