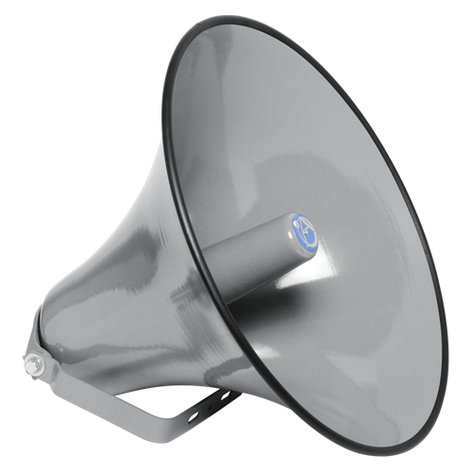

Atlas IED DR42 DR-42

Atlas Sound DR Series double re-entrant horns are designed for use with compression driver units to offer superior music and voice communications over distance and ambient noise.

The circular projectors are equipped with a resonance damping ring for best response through an extended frequency range.

Weather-resistant units will accommodate Atlas Sound PD and SD Series compression drivers or any driver with standard 1 3/8" -18 male thread coupling.

The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments.

The rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.

Atlas Sound DR-42 Features:

• Multi-Purpose Reflex Sound Horns for High Intelligibility Sound Distribution and Voice and Signal Applications
• Accepts All Standard High Efficiency Compression Drivers with 1 3/8" - 18 Male Threads
• Exponentially-Flared for Uniform Sound Distribution
• Weatherproof, All-Metal Construction for Year Round Use

Atlas Sound DR-42 Specifications:

• Dispersion: 85°
• Depth: 16" (40.64 cm)
• Diameter: 21" (53.34 cm)
• Shipping Weight: 13.00 lbs (5.90 kg)
