Whirlwind DIRECTOR Passive Direct Box

OUR PART #: DIRECTOR MFR #: DIR

Copied to clipboard

A premium Direct Box that converts a line, instrument or speaker level signal to a low impedance mic level. The input is Hi-Z bridging. ...Read more

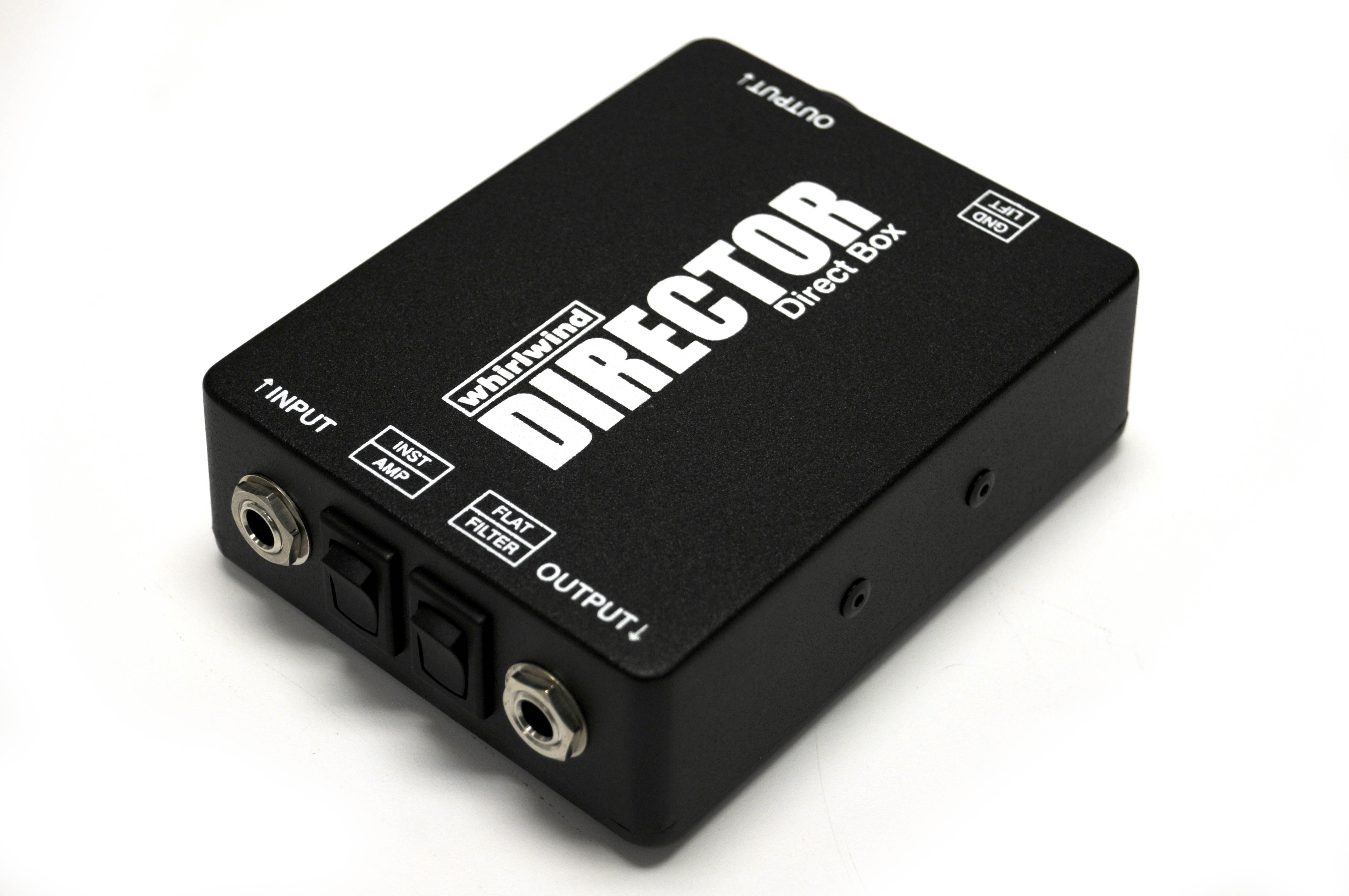

Whirlwind DIRECTOR Passive Direct Box Image 1
Whirlwind DIRECTOR Passive Direct Box
Our Price: $111.00
List Price: $158.58
You save 30%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

A premium Direct Box that converts a line, instrument or speaker level signal to a low impedance mic level. The input is Hi-Z bridging. Features include a 30dB pad switch for selecting line/instrument or speaker level, a switchable low pass roll-off filter to eliminate amplifier noise, and a ground lift switch on the Lo-Z output. Utilizes the TRHL-M transformer.

Features

  • 1/4" parallel wired in/out jacks
  • Ground Lift switch to help eliminate hum and buzz
  • 30dB pad switch for selecting between line/instrument or speaker level input signals
  • Switchable high cut filter to eliminate amplifier noise
  • Uses Whirlwind's TRHL-M transformer with metal shield

Specifications

  • Input Impedance: 20k Ohms
  • Output Impedance: 150 Ohms
  • Frequency Response: 20Hz-20kHz ±1dB
  • Level Change (input to output): -20dB (pad out), -50dB (pad in)
