Audio-Technica AT8647QM/S Microphone Shock Mount Plate with Switch

OUR PART #: AT8647QMS MFR #: AT8647QM/S

Copied to clipboard

For surface-mounted microphones (lecterns, pulpits, conference tables... ...Read more

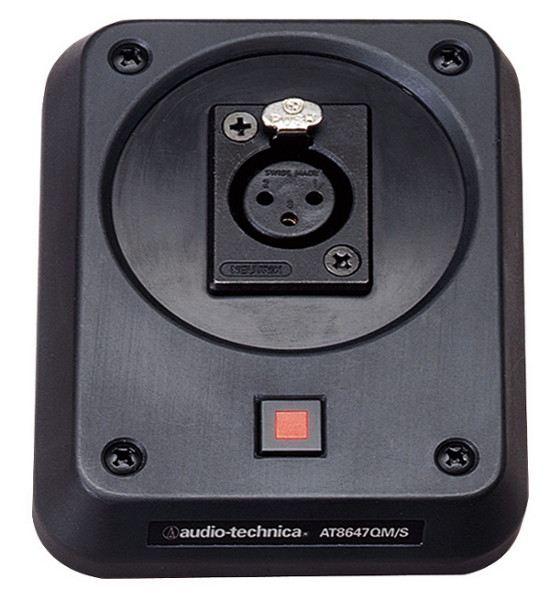

Audio-Technica AT8647QM/S Microphone Shock Mount Plate With Switch Image 1
Audio-Technica AT8647QM/S Microphone Shock Mount Plate With Switch
Our Price: $99.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

For surface-mounted microphones (lecterns, pulpits, conference tables, etc.), the AT8647QM/S shock-mount plate employs a sturdy-yet-flexible suspension panel that provides effective isolation from impact vibration and mechanical noise normally transmitted from the surface. It additionally features a phantom-powered mute switch with a lighted "on" indicator, and is designed especially for UniPoint® and Engineered Sound® gooseneck microphones, as well as other lightweight plug-in microphones equipped with male XLR3-type outputs.

Features

  • Intended for use with microphones mounted on lecterns, pulpits, conference tables and other surfaces
  • Female XLR3-type connector supports plug-in gooseneck microphones with male XLR3-type outputs
  • Suspended panel isolates microphone from the mounting surface
  • Built-in electronic mute circuit for phantom-powered microphones
  • Rugged mechanical switch provides push-on/push-off operation
  • Lighted Mute switch LED indicates microphone on/off status (requires 48V phantom power)
  • Operates on 24 V to 48 VDC phantom power
  • Terminal screw output connections
  • Low-profile design with low-reflectance black finish for minimum visibility

Specifications

  • Mute function: Silent mute circuit designed to work with condenser (powered) microphones
  • Switch: Mechanical push-on/push-off
  • Input connector: Female XLR3-type
  • Output connectors: Terminal Screws
  • Off (mute) attenuation: 50 dB @ 1000 Hz, 35 dB @ 100 Hz, 30 dB @ 50 Hz, Note: 150 Ω source, 100 kΩ load
  • Phantom power: 24 - 48 VDC, 3 mA, typical requirements
  • Output impedance: 360 Ω
  • Insertion Loss: 1dB
  • Dimensions (W x D x H): 3.17" x 4.10" x 0.61" (80.5 x 104 x 15.5mm)
  • Weight: 3.5 oz. (99 g)
  • Note: further information can be found within the items located under the "Documentation" tab above.
