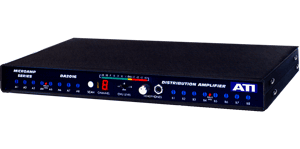

Audio Technologies Inc. DA2016-1
Distribution Amp, Dual 1 x 8, Transformer Isolated Output

OUR PART #:  DA2016-1

Individual level controls. LED bargraph output meter. Heaphone amplifier.
Learn More
Our Price: $2,781.60
List Price: $2,850.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Audio Technologies Inc. DA2016-1
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Individual level controls. LED bargraph output meter. Heaphone amplifier. Barrier block connectors with fanning strips. 1 RU enclosure.


  • Dual 1 x 8 Transformer isolated output
  • Output Level: +26dBm, 600 ohms, transformer isolated
  • THD: .001% typical, 20 to 20kHz
  • Frequency Response: +/-.25dB 20 to 20,000 Hz
  • Noise: -100dBm EIN 20Hz to 20kHz
  • Hum Rejection: 80 dB common mode, 60 to 120Hz CMR
  • Crosstalk: 70dB Minimum @ 1kHz
  • Input Impedance: Balanced differential inputs 30K ohm bridging
  • Power: 115/230 VAC +/-10%, 47-63 Hz
  • Size (W x H x D): 17" x 1 3/4" x 10 1/2"
  • Weight: 15 lbs
  • Rack Mounting: 21075-501 Mounts two units side by side
  • Warranty: Limited, One Year Warranty
