Audio Technologies DA1008-1 1 X 8 Dist Amplifier, Metered +26dBM Output

OUR PART #: DA1008-1

Copied to clipboard

Robust 1 X 8 Distribution Amplifier with individual level controls. LED bargraph output meter. Headphone amplifier. ...Read more

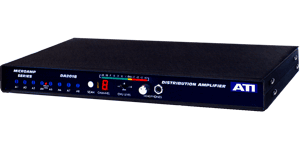

Audio Technologies DA1008-1 1 X 8 Dist Amplifier, Metered +26dBM Output Image 1
Audio Technologies DA1008-1 1 X 8 Dist Amplifier, Metered +26dBM Output
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Robust 1 X 8 Distribution Amplifier with individual level controls. LED bargraph output meter. Headphone amplifier. Barrier block connectors with fanning strips, metered.+22dBM transformer output.

Specifications:

  • OUTPUTS LEVELS: DA2016/DA1008-1 or -2 +26dBm
  • DISTORTION: .001% typical, 20 to 20kHz
  • FREQUENCY RESPONSE: +/-.25dB 30 to 20,000 Hz
  • NOISE: -100dBm EIN 20Hz to 20kHz
  • HUM REJECTION: 80 dB common mode, 60 to 120Hz
  • CROSSTALK: 70dB Minimum @ 1kHz
  • INPUT IMPEDANCE: Balanced differential inputs 30k ohmbridging
  • GAIN: 26dB, front panel screwdriver adjustable
  • POWER: 115/230 VAC +/- 10%, 47-63 Hz.
  • SIZE: Inches (mm) 17(432) W x 1.75(44.5) H x 10.5(267)D; 15 lbs. (7Kg)
  • METERING: Electronic SCAN switching, 12 segments, 3color, peak reading LED, VU indicator, 0 VU selectable to +4, +8, or +1 8dBmby front panel switch, LED channel indicator.
  • HEADPHONE OUTPUT: 20-volt p-p output to 600-ohmphones, 30mW output to low impedance phones
  • MOUNTING: Suction feet for non-slip desk mounting.Rack mount system 21075-501 mounts two units in one rack.
  • CONNECTORS: High density screw terminal barrier blocks. Fanning stripssupplied for easy installation.
