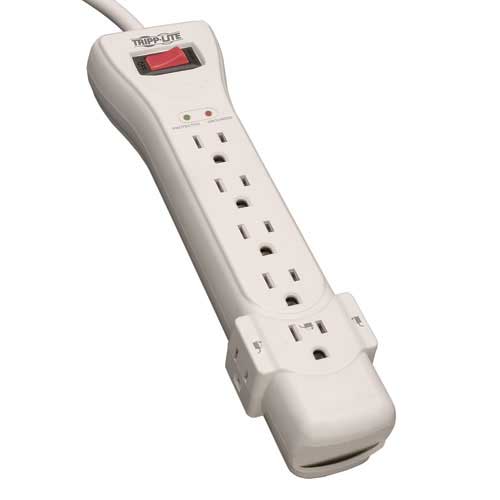

Tripp Lite SUPER-7
7 Outlet, 7ft cord, 2160 joule Strip - Protect It! Surge Suppressor

OUR PART #  SUPER-7

Our Price: $21.76
List Price: $25.60
You save 15%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The SUPER7 Surge Suppressor from Tripp Lite has 7 outlets, a 7-ft. cord with a space-saving right-angle plug, and diagnostic LEDs. The unit has a surge suppression rating of 2160 joules to handle the strongest surges. $75,000 Ultimate Lifetime Insurance (USA & Canada Only).

Applications include personal computers, CAD/CAM/CAE workstations, network nodes, fileservers, point-of-sale terminals, audio/visual devices, and more.

Features:

  • 7 outlets
  • 7-ft. cord with space-saving right-angle plug
  • Surge suppression rating: 2160 joules
  • EMI/RFI noise filtering
  • Can accommodate up to 3 transformers without blocking remaining outlets
  • $75,000 Ultimate Lifetime Insurance (USA and Canada Only) covers connected equipment
  • Diagnostic LEDs indicate protection present & ground present
  • Keyhole supports for wall mounting

Specfications:

OUTPUT

  • Frequency compatibility  50 / 60 Hz
  • Output watts  1800
  • Circuit Breaker (amps)  15
  • Outlet quantity / type  7 NEMA 5-15R
  • Transformer accommodation  Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 5 transformers total
  • Outlet orientation  Single row of 5, plus 2 side mounted outlets

INPUT

  • Nominal Input Voltage(s) Supported  120V AC
  • Recommended Electrical Service  120V (110-125V)
  • Input connection type  NEMA 5-15P
  • Input cord length (ft.)  7
  • Input cord length (m)  2.1
  • Input cord gauge, type  14 gauge, SJT
  • Voltage compatibility (VAC)  120
  • Maximum Surge Amps  144000

LEDS ALARMS & SWITCHES

  • Switches  Two position on/off power switch
  • Diagnostic LEDs  Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status

SURGE / NOISE SUPPRESSION

  • AC suppression joule rating  2160
  • AC suppression response time  < 1 ns
  • Protection modes  Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping voltage (RMS)  150
  • UL1449 let through rating  330 L-G, 400 L-N, 400 N-G
  • EMI / RFI filtering  Up to 20 dB

DATALINE SURGE SUPPRESSION

  • Telephone/DSL Protection  No
  • Cable (Coax) Protection  No
  • Network (Ethernet) Protection  No

PHYSICAL

  • Unit Dimensions (HWD/in)  1.54 x 2.72 x 10.30
  • Unit Dimensions (HWD/cm)  3.91 x 6.91 x 26.16
  • Unit weight (lbs)  1.39
  • Unit weight (kg)  0.63
  • Material of construction  Plastic
  • Integrated keyhole mounting tabs  Keyhole mounting tabs enable wall mounting
  • Housing Color  cool gray
  • AC line cord color  Gray
  • Style  Strip
  • Outlets center to center measurement  Between Standard Outlets = 29mm; Between Transformer Outlets = 48mm
  • Keyhole slot center to center measurement  Distance Between Slots = 78mm; Distance Between Slot Height = 24mm

SPECIAL FEATURES

  • Right-Angle Plug  Yes

CERTIFICATIONS

  • UL1449 3rd Edition (AC Suppression)  UL1449 3RD EDITION
  • UL1363 (Power Tap)  UL1363
  • cUL / CSA (Canada)  cUL
  • Approvals  Exceeds IEEE 587 category A&B specifications

WARRANTY

  • Product Warranty Period (Worldwide)  Lifetime limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico)  $75,000 Ultimate Lifetime Insurance

Click to download

Tripp Lite SUPER-7
7 Outlet, 7ft cord, 2160 joule Strip - Protect It! Surge Suppressor

OUR PART #  SUPER-7

Product Information:

The SUPER7 Surge Suppressor from Tripp Lite has 7 outlets, a 7-ft. cord with a space-saving right-angle plug, and diagnostic LEDs. The unit has a surge suppression rating of 2160 joules to handle the strongest surges. $75,000 Ultimate Lifetime Insurance (USA & Canada Only).

Applications include personal computers, CAD/CAM/CAE workstations, network nodes, fileservers, point-of-sale terminals, audio/visual devices, and more.

Features:

  • 7 outlets
  • 7-ft. cord with space-saving right-angle plug
  • Surge suppression rating: 2160 joules
  • EMI/RFI noise filtering
  • Can accommodate up to 3 transformers without blocking remaining outlets
  • $75,000 Ultimate Lifetime Insurance (USA and Canada Only) covers connected equipment
  • Diagnostic LEDs indicate protection present & ground present
  • Keyhole supports for wall mounting

Specfications:

OUTPUT

  • Frequency compatibility  50 / 60 Hz
  • Output watts  1800
  • Circuit Breaker (amps)  15
  • Outlet quantity / type  7 NEMA 5-15R
  • Transformer accommodation  Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 5 transformers total
  • Outlet orientation  Single row of 5, plus 2 side mounted outlets

INPUT

  • Nominal Input Voltage(s) Supported  120V AC
  • Recommended Electrical Service  120V (110-125V)
  • Input connection type  NEMA 5-15P
  • Input cord length (ft.)  7
  • Input cord length (m)  2.1
  • Input cord gauge, type  14 gauge, SJT
  • Voltage compatibility (VAC)  120
  • Maximum Surge Amps  144000

LEDS ALARMS & SWITCHES

  • Switches  Two position on/off power switch
  • Diagnostic LEDs  Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status

SURGE / NOISE SUPPRESSION

  • AC suppression joule rating  2160
  • AC suppression response time  < 1 ns
  • Protection modes  Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
  • Clamping voltage (RMS)  150
  • UL1449 let through rating  330 L-G, 400 L-N, 400 N-G
  • EMI / RFI filtering  Up to 20 dB

DATALINE SURGE SUPPRESSION

  • Telephone/DSL Protection  No
  • Cable (Coax) Protection  No
  • Network (Ethernet) Protection  No

PHYSICAL

  • Unit Dimensions (HWD/in)  1.54 x 2.72 x 10.30
  • Unit Dimensions (HWD/cm)  3.91 x 6.91 x 26.16
  • Unit weight (lbs)  1.39
  • Unit weight (kg)  0.63
  • Material of construction  Plastic
  • Integrated keyhole mounting tabs  Keyhole mounting tabs enable wall mounting
  • Housing Color  cool gray
  • AC line cord color  Gray
  • Style  Strip
  • Outlets center to center measurement  Between Standard Outlets = 29mm; Between Transformer Outlets = 48mm
  • Keyhole slot center to center measurement  Distance Between Slots = 78mm; Distance Between Slot Height = 24mm

SPECIAL FEATURES

  • Right-Angle Plug  Yes

CERTIFICATIONS

  • UL1449 3rd Edition (AC Suppression)  UL1449 3RD EDITION
  • UL1363 (Power Tap)  UL1363
  • cUL / CSA (Canada)  cUL
  • Approvals  Exceeds IEEE 587 category A&B specifications

WARRANTY

  • Product Warranty Period (Worldwide)  Lifetime limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico)  $75,000 Ultimate Lifetime Insurance

Click to download

Add to Cart

We're sorry, only of this item available



Call a Sales Pro at 800-356-5844 for more information
