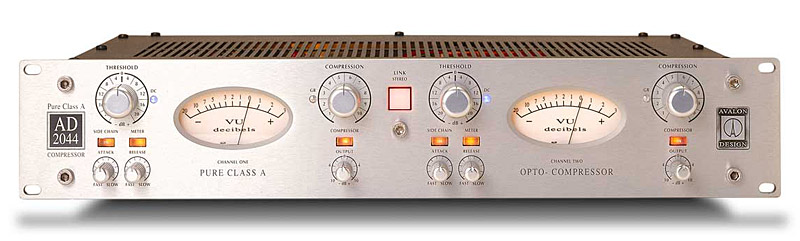

Avalon AD2044
Compressor, Pure Class A Opto, Dual Mono/Stereo

OUR PART #:  AD2044

The AD2044 features 100% discrete, pure class A signal amplifier configured with high speed current monitored optical control elements.
Learn More
Our Price: $2,970.00
List Price: $3,300.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Avalon AD2044
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AD2044 features 100% discrete, pure class A signal amplifier configured with high speed current monitored optical control elements. These "invisible" opto elements enable the AD2044 to deliver totally transparent, low noise gain reduction within the minimalist signal path design. No VCAs are incorporated. Variable attack and release controls plus side chain access, provide unlimited creative control from soft compression to hard limiting.

Sonic Excellence
The Avalon AD2044 Pure Class A opto-compressor is the most transparent, low noise optical-compressor available today. Designed to optimize absolute signal integrity and musical performance, the AD2044 combines advanced electronics with sonic excellence unequaled by lesser designs. The AD2044 is the perfect solution for two buss music-program compression, mono bass and instruments and  mastering applications.

Features include state-of-the-art, balanced 100% discrete, Pure Class A signal amplifiers, practical "real-world" user features and rugged hardware designed to deliver true high performance audio for many years.

Linear Option Compression
Custom manufactured, high speed linear opto elements provide the non invasive passive attenuator system for invisible gain reduction. The AD2044 incorporates a unique external control loop and current monitored optical driver for smooth control plus the benefits of traditional vintage LDR compression.

Minimum Signal Path Design
Avalon's advanced true symmetry design offers high-voltage, large headroom, extended bandwidth and very low noise. The use of 100% discrete, Pure Class A signal amplifiers offer the serious music professional unlimited sonic character and a natural harmonic detail that enhances the program material and becomes one with the music itself.

The AD2044 can be found in the world's leading recording studio's, mastering facilities and artist/producers outboard racks. These professionals rely on the AD2044 daily to help them complete their "sonic signature" and turn recordings into musical masterpieces.

Features:

  • Smooth musical detail and sonic excellence
  • Minimum audio signal path
  • Pure Class A, 100% discrete design
  • Dual mono or Stereo operation
  • Transparent, non-invasive compression
  • Very low noise -94dB
  • High headroom +30dB
  • Fully balanced inputs and outputs
  • Long lasting, stainless steel hardware
  • External 150W toroidal power supply
  • 100% discrete power supplies for audio path
  • All signal routing w/sealed silver relays
  • External side-chain access XLR
  • Low distortion less than 0.5% THD and IMD
  • Wide bandwidth -3dB 1Hz to 450kHz
  • Large accurate professional VU meters
  • Variable threshold, ratio, attack & release
  • DC coupled, no transformers in audio path
  • Fully balanced inputs and outputs

Specifications:

  • Circuit Topology: High-voltage 100% discrete, balanced and symmetrical Class A
  • Output Gain Range: Variable -10dB to +10dB, center detent 0dB
  • Maximum Input Level: +30dB balanced XLR pin 2 hot
  • Maximum Output Level: +32dB balanced 600 ohms, DC coupled, high-current discrete Class A
  • Input/Output Type: XLR type, pin 2 hot balanced
  • Noise 20kHz, Unweighted: -94dB (compressor in)
  • Distortion THD, IMD: 0.5% (typical 0.05% at +6dB 1kHz)
  • Frequency Response, -3dB: 1Hz to 450kHz (input band limited)
  • Gain Reduction Meter: Illuminated gain reduction meter 0dB to -20dB range
  • Output Meter: Professional moving coil type -20dB to +3dB (0VU=+4dB)
  • Compressor Type: Optical passive attenuator
  • Bypass: Hard-wire relay bypass for compressor in-out
  • Link Switch: Large illuminated push switch for stereo L-R linking
  • Make Up Gain: Variable 20dB range (-10dB to +10dB)
  • Threshold: Threshold variable -24dB to +20dB
  • Ratio: Ratio-compression variable 1:1 to 20:1
  • Attack: Variable 0.5mS to 150mS
  • Release: Variable 80mS to 5 seconds for 12dB release
  • Side-Chain: XLR type, pin 2 hot balanced (switch/relay selectable from front panel)
  • AC-DC Power: External AC supply, 150W toroidal transformer, 4 pin cable 90V isolated
  • Dimensions: 19" x 3.5" x 12"
  • Shipping Weight: 30 lbs
