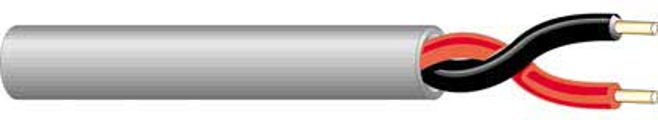

2-Conductor 18AWG Communication Cable with Gray Jacket By The Foot


The 224 is an 18/2 stranded bare copper conductors, unshielded with an overall jacket.
Learn More
Our Price: $0.27
Write the first review.

This product must be purchased in multiples of 10

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


West Penn 224-BY-FOOT
Similar Products

The 224 is an 18/2 stranded bare copper conductors, unshielded with an overall jacket.


  • Indoor for:
      -  Intercom
     -  Security
      -  Sound
     -  Audio
      -  Background Music
     -  Power Limited Control Circuits


  • Conductor: 18 AWG Bare Copper
  • Stranding: 7x26
  • Insulation Material: PVC
  • Insulation Thickness: 0.008'' Nom.
  • Number of Conductors: 2
  • Shield: None
  • Drain: None
  • Jacket Material: PVC
  • Jacket Thickness: 0.017'' Nom.
  • Overall Cable Diameter: 0.156'' Nom.
  • Approximate Cable Weight: 16.1 Lbs/1M' Nom.
  • Flame Rating UL: 1666 Riser Flame Test
  • Temperature Rating: -20°C To +60°C
  • Operating Voltage: 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 30 pf/ftNom.
  • DC Resistance per Conductor @ 20deg C: 6.2 Ohms/1M'Nom.
  • Insulation Colors: Black ,Red
  • Jacket Color: Brown
  • RoHS Compliant: Yes
  • Max. Recommended Pull Tension: 42 lbs.
  • Min. Bend Radius (Install): 1.6”
