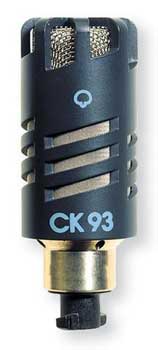

Hypercardioid Microphone Capsule, Blue Line Series


Similar in response to the CK 91...
Learn More
Our Price: $199.00
List Price: $249.00
You save 20%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Similar in response to the CK 91, the CK 93 provides additional attenuation of 120º off-axis sounds that is especially useful when used in live sound for feedback suppression and for use in recording. Includes foam windscreen.

Part of AKG's Blue Line, this capsule is for use with the SE300B preamp unit.

AKG Blue Line Series Features

  • Multiple directional capsules and configurations available on a standard powering/output module
  • Positive-action Modulock™ bayonet capsule mounting system
  • Capsule designs employ gold sputtered diaphragms
  • High sensitivity
  • High acoustic level capability


  • Polar pattern: Hypercardioid
  • Frequency range: 20–20,000 Hz
  • Sensitivity: 10 mV/Pa (-40 dBV)
  • Max. SPL for 1 % THD: 132/142 dB
  • Equivalent noise level: 17 dB-A
  • Signal/noise ratio (A weighted): 77 dB
  • Preattenuation pad: -10 dB, switchable
  • Bass cut filter: 12 dB/octave at 75 Hz
  • Electrical impedance: 200 Ohms
  • Recommended load impedance: >1,000 Ohms
  • Power requirement: 9 to 52 V phantom power to DIN 45 596
  • Current consumption: <2 mA
  • Connector: bayonet mount
  • Finish: dark gray
  • Size: dia.: 19 mm (0.7 in.); length: 52 mm (2 in.)
  • Net/Shipping weight: 35/200 g (1.2/7.1 oz.)
  • Standard accessory: W 90
  • Optional accessory: W 95
