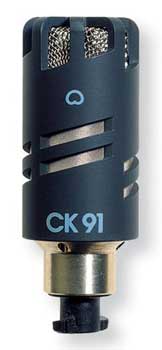

AKG CK91
Cardioid Pattern Capsule, Blue Line Series

OUR PART #:  CK91

The wide, flat frequency response and well-controlled pickup pattern of the CK 91 make it ideal for general applications where suppression of off-axis sound is desired.
Learn More
Our Price: $199.00
List Price: $249.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

AKG CK91
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The wide, flat frequency response and well-controlled pickup pattern of the CK 91 make it ideal for general applications where suppression of off-axis sound is desired. Includes foam windscreen.

Part of AKG's Blue Line, this capsule is for use with the SE300B preamp unit.

AKG CK91 Features:

  • Multiple directional capsules and configurations available on a standard powering/output module
  • Positive-action Modulock™ bayonet capsule mounting system
  • Capsule designs employ gold sputtered diaphragms
  • High sensitivity
  • High acoustic level capability

AKG CK91 Specifications:

  • Polar pattern: Cardioid
  • Frequency range: 20–20,000 Hz
  • Sensitivity: 10 mV/Pa (-40 dBV)
  • Max. SPL for 1 % THD: 132 dB / 142 dB
  • Equivalent noise level: 17 dB-A
  • Signal/noise ratio (A weighted): 77 dB
  • Preattenuation pad: -10 dB, switchable
  • Bass cut filter: 12 dB/octave at 75 Hz
  • Electrical impedance: 200 Ohms
  • Recommended load impedance: >1,000 Ohms
  • Power requirement: 9 to 52 V phantom power to DIN 45596
  • Current consumption: <2 mA
  • Connector: bayonet mount
  • Finish: dark gray
  • Size: dia.: 19 mm (0.7"); length: 52 mm (2")
  • Net/Shipping weight: 35/200 g (1.2/7.1 oz.)
  • Standard accessory: W 90
  • Optional accessory: W 95
