Atlas Sound WD417-72V
Taps8" Loudspeaker with 25/70.7V Transformer and 50 Ohm Volume Control

OUR PART #:  WD417-72V

Our Price: $53.99
List Price: $67.99
You save 21%!
Write the first review.
Atlas Sound WD417-72V
In Stock

Related Products

Utilize Atlas Sound WD Series slope-front loudspeaker/baffle packages for a wide variety of surface-mount applications where aesthetics and high-quality sound reproduction are primary concerns. This attractive model series has been installed in offices, conference centers, reception areas, classrooms, lecture halls and retail outlets.

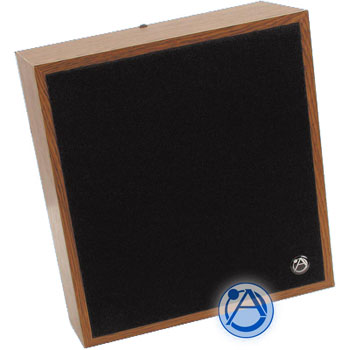

This loudspeaker/baffle package features a walnut grain wall baffle/enclosure with an attractive black fabric grille. Baffles are designed with a 9.5° slope to provide directional sound dispersion offset in the direction of radiation. Units are constructed of durable particle board and finished with a walnut grain vinyl covering.

Each package contains a high-quality 8" dia. Loudspeaker with a 5-ounce ceramic magnet and exhibits a wide frequency response with low distortion. A pre-assembled transformer is included with dual-voltage (25/70.7) and four power taps. Also includes a 50-ohm pot volume control for individual loudspeaker adjustment. Knob may be removed and volume adjusted with a screwdriver to provide additional security if required.

Atlas Sound WD417-72V Features:

  • Loudspeaker/Transformer/Baffle Package is Convenient and Cost Effective
  • Attractive Design is suitable for use in a variety of surface-mount applications
  • 9.5° Sloped Design offers directional sound projection
  • Includes high-quality 8" loudspeaker with line transformer

Atlas Sound WD417-72V Baffle/Enclosure Specifications:

  • Slope: 9.5°
  • Wide: 9-1/2"
  • High: 10-1/2"
  • Projects, Top: 5-1/2"
  • Projects, Bottom: 3-3/4"

Atlas Sound WD417-72V Loudspeaker Specifications:

  • Size: 8"
  • Magnet: 5.0 oz Ceramic
  • V.C. Diameter: 1"
  • V.C. Impedance: 8 ohms
  • Flux Density: 9,200 gauss
  • Sensitivity: 96dB at 1 watt, 1 meter
  • Watts (Program): 15
  • Freq. Response: 50Hz-15kHz

Atlas Sound WD417-72V Transformer Specifications:

  • Primary Volts: 25/70.7
  • Secondary: 8 ohms
  • Core Size: 1/2" x 5/8"
  • Taps: C, 1/2, 1, 2, 4
  • Power: 4 watts
  • Leads: Color coded, stripped & tinned
