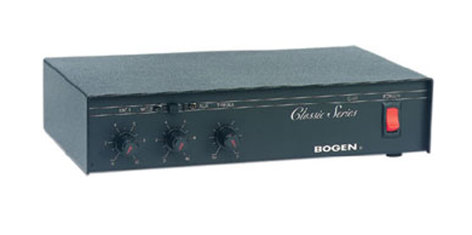

Bogen Communications C20
20 Watt Paging Mixer/Amplifier

OUR PART #:  C20-BOGEN

The Bogen Classic Series Models C10, C20, C10MOH, and C20MOH offer dependable performance and flexibility. The C10 and C10MOH are rated at 10 watts.
Learn More
Our Price: $209.88
List Price: $246.64
You save 15%!
Write the first review.
Bogen Communications C20
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Bogen Classic Series Models C10, C20, C10MOH, and C20MOH offer dependable performance and flexibility.

The C10 and C10MOH are rated at 10 watts. The C20 and C20MOH are rated at 20 watts. All models are UL and CSA listed.

The Classic Series is designed with discreet complementary transistor circuitry to assure maximum reliability of power output stages.

Bogen Communications C20 Features:

  • 20W output power
  • Transformer isolated 4 ohm, 8 ohm, 16 ohm, 25V and 70V output taps
  • Rear panel auxiliary receptacle
  • One dedicated MIC 1 input — Lo-Z balanced
  • One switchable MIC 2/Aux 1 input
  • Contact muting of Aux input
  • Transformer-isolated 600? telephone paging input
  • Separate rear panel-mounted TEL volume control
  • Voice activated muting of Aux input by Tel input
  • Variable trigger threshold for voice activation
  • Optional wall mount kit
  • Optional impedance matching transformer 10k/600?
  • UL and CSA listed

Bogen Communications C20 Specifications:

  • Power Output: 20 WRMS
  • Distortion: Less than 1% @ RPO
  • Frequency Response: 70Hz to 16kHz ±1dB
  • Hum and Noise:
    • MIC – 55dB below rated output
    • AUX – 70dB below rated output
    • TEL – 70dB below rated output
  • Input Sensitivity:
    • MIC – Lo-Z Balanced600µV
    • AUX – 85mV (10k-ohms)
    • TEL – 75mV (600?)
  • Outputs: 4-, 8-, 16 ohms, 25V, 70V
  • MOH: Output 600 ohm @ 1V or 8 ohm @ 1W
  • Output Connections: Screw terminal strip
  • Input Connections: Two MIC Lo-Z terminals,AUX Hi-Z jack,TEL terminals
  • Controls: MIC 1, MIC2/AUX (switch selected), Treble, TEL,VOX, Power
  • Tone Control: TREBLE, -11dB @ 10kHz (cut only)
  • Power Requirements: 120V AC, 60Hz, 50 watts
  • Dimensions (WxHxD): 11-3/8" x 2-7/8" x 7-3/8"
  • Shipping Weight: 6 lbs.
Bogen Communications RPK35B Rack Mount Kit for C10 & C20 Amps
Bogen Communications RPK35B Rack Mount Kit for C10 & C20 Amps
Rack mount kit for use with Bogen C10 and C20 series amplifiers.Dimensions (W x H x D): 19" x 3-1/2" x 6-1/2"Weight: 3 lbs.
