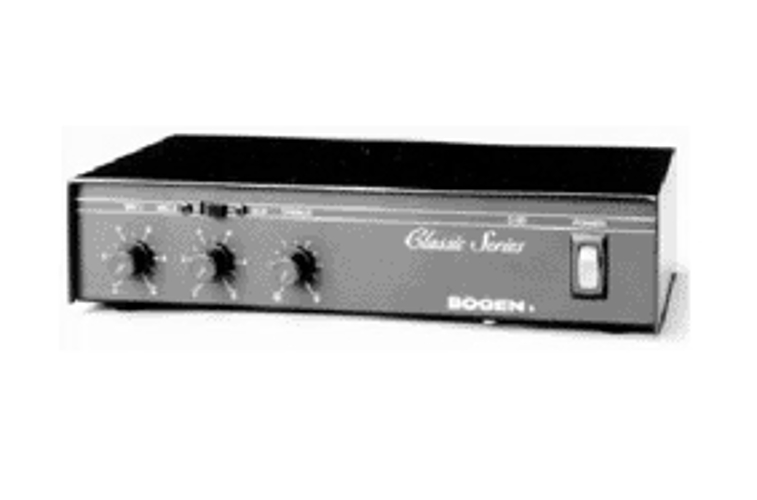

Bogen Communications C10
10 Watt Paging Mixer/Amplifier

OUR PART #:  C10-BOGEN

The Classic Series C10 and C20 are rated at 10 and 20 watts respectively. Both models are available with a music on hold output (Models C10 MOH & C20MOH).
Learn More
Our Price: $172.02
List Price: $195.42
You save 12%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bogen Communications C10
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Classic Series C10 and C20 are rated at 10 and 20 watts respectively. Both models are available with a music on hold output (Models C10 MOH & C20MOH).

The amplifiers mix 3 inputs: 2 Mic and Tel, or 1 Mic, 1 Aux and Tel. A second telephone input can be added using an accessory transformer. A built-in circuit provides microphone precedence over the Aux channel when a customer-supplied SPST switch is actuated. The Tel input is signal activated and automatically mutes the Aux channel during a page.

Each input has its own volume control; a treble control is included to adjust the tonal balance of the output. The Tel channel includes screwdriver adjustable mute threshold (VOX) and volume controls.

Balanced and unbalanced outputs are provided for 4 ohm 8 ohm and 16 ohm speaker systems and for 25 volt and 70 volt constant voltage systems. The C10 MOH and C20MOH versions include a Music-On-Hold output from the Aux input source. The input is unaffected by paging. Two output taps are provided: 600 ohm @ 1 volt or 8 ohm @ 1 watt. Screw terminals are used for all connections. The output includes a screwdriver adjustable level control on the rear panel.

Thermal and electrical protection is built in and is designed to protect the amplifier against abnormal heat build-up and short circuited or overloaded outputs.

Bogen Communications C10 Specifications:

  • Rated Power Output: 10 Watts
  • Outputs (Impedance): 4, 8, 16 ohms, 25V, 70V bal.lines
  • Power Consumption: 38 Watts
  • Dimensions (WxDxH): 11-3/8" x 7-3/4" x 2-7/8"
Rack Mount Kit for C10 & C20 Amps
Bogen Communications RPK35B Rack Mount Kit for C10 & C20 Amps
Rack mount kit for use with Bogen C10 and C20 series amplifiers.Dimensions (W x H x D): 19" x 3-1/2" x 6-1/2"Weight: 3 lbs.
73.30

In Stock
Free Shipping Available
600 Ohm Line Input Transformer
Bogen Communications WMT1A 600 Ohm Line Input Transformer
The Bogen Model WMT1A transformer is designed especially for matching inputs from, or outputs to, a 600-ohm line.As an input-matching transformer, it may be used to connect telephone systems to most Bogen public address amplifiers for ...
33.24 43.00 23
