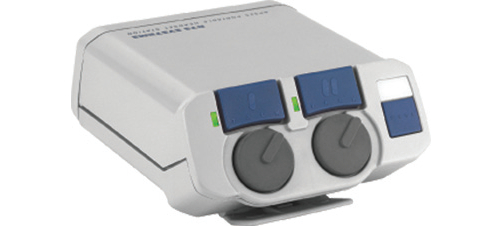

RTS BP-325
2-Channel Beltpack for Two-Wire Intercom Systems in Gray

OUR PART #  BP325

Our Price: $486.00
(Low Price Guarantee)
In Stock

Recommended Accessories

RTS' BP-325 is a portable beltpack for use with RTS™ Two-Wire intercom systems. The BP-325 is a binaural (stereo) programmable 2 channel belt pack with PGM-in capability. The BP-325 is designed for use with a dynamic microphone only.

RTS BP-325 Features:

  • Call function that allows the user to send or receive call signals to other devices on the intercom channel, including audible call alert on the listen side.
  • Microprocessor-controlled microphone kill detect.
  • Powered externally, via the intercom system power supply on channel one.
  • Headset 4- or 5-pin XLR connection

RTS BP-325 Specifications:

  • Channel Supplied Power Requirements: 30 VDC nominal (standard RTS line), 65 to 85 mA
  • Environmental Requirements:
    • Storage: -20°C to 80°C; 0% to 95% humidity, noncondensing
    • Operating: 0°C to 50°C; 0% to 95% humidity, noncondensing
  • Physical:
    • Dimensions: 5" H x 3.75" W x 2.05" D (127 x 96.3 x 52.1mm)
    • Weight: 0.75 lb (340 g)
    • Housing color: Grey
    • Exterior: Polystyrene and polycarbonate mix
  • Impedance Across Intercom Line: 10,000 Ohms typical
  • Ambient Temperature Range:
    • Operating: 0° C to 50° C
    • Storage: -40° C to 125° C
  • Noise Contribution to 200 Ohm Intercom Line: -75 dBu
  • Program Input:
    • Maximum input level: +20 dBu
    • Nominal input level: -10 to +8 dBu
    • Frequency response: 100 Hz to 12 kHz, ±3 dB
  • Monaural Dynamic-mic Headset Connector:
    • XLR-4-31 receptacle (J13)
      • Pin 1 - Microphone low
      • Pin 2 - Microphone high
      • Pin 3 - Common
      • Pin 4 - Headphone high
  • Stereo Dynamic-mic Headset Connector:
    • XLR-5-31 receptacle (J14)
      • Pin 1 - Microphone low
      • Pin 2 - Microphone high
      • Pin 3 - Common
      • Pin 4 - Headphone left high
      • Pin 5 - Headphone right high
  • Carbon-mic Headset Connector (J1):
    • 1/4", 3-conductor Phone Jack
      • Used for Headset
        - Tip - Carbon microphone
        - Ring - Headphone
        - Sleeve - Common
      • Used for Mic Switch
        - Tip - Remote switch normal-open contact
        - Ring - No connection
        - Sleeve - Remote switch common
  • Intercom Line Input Connector (J11):
    • XLR-3-31 female receptacle
      • Pin 1 - Common
      • Pin 2 - Channel 1 intercom audio and +DC
      • Pin 3 - Channel 2 intercom audio
  • Line Loop/Aux Connector (J10):
    • XLR-3-32 male receptacle
      • Used for Loop-through:
        - Pin 1 - Common
        - Pin 2 - Channel 1 intercom audio and +DC
        - Pin 3 - Channel 2 intercom audio
      • Used for Program Input:
        - Pin 1 - Common
        - Pin 2 - Program input high
        - Pin 3 - Program input low
      • Used for Remote Mic Switch and/or External Power:
        - Pin 1 - Common
        - Pin 2 - +22 to +24 volts DC
        - Pin 3 - Remote switch normal-open contact
