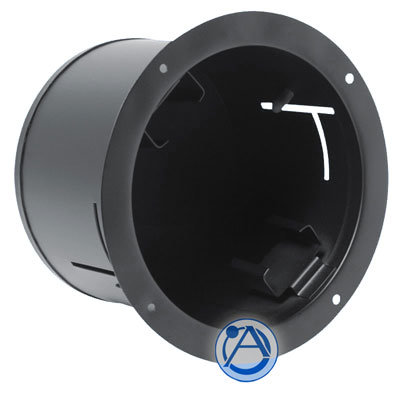

Atlas IED BMT95-8 Blind-Mount Ceiling System for 8" Loudspeakers

Employ Atlas Sound patented Blind-Mount enclosures for retrofit ceiling installations in drywall or areas with hard-to-access plenums. The unique adjustable support system of the BMT Series assures cost-effective and time-saving installation of 8" loudspeaker and their corresponding grilles in these special applications.

Atlas Sound Blind-Mount enclosure systems provide an easy and cost-effective alternative for secure loudspeaker installation in retrofit ceiling applications. All necessary hardware is provided including a unique support system with mounting ears that telescope out from inside the enclosure and adjust vertically to accommodate ceilings with a thickness of 1/2" to 1 3/8".

All models are CRS construction and include torsion-spring receptacles for quick mounting of torsion-spring grilles. (J-Nuts are included on the return of the enclosure to accommodate surface-mounting grilles). To allow cable access, enclosure backplates are manufactured with three 1/2" conduit knockouts. These enclosures are also equipped with sound damping material to minimize metallic resonance. Finished in a textured black epoxy.

The BMT95-8 is supported by three mounting ears and will accept a wide variety of Atlas Sound torsion-spring and surface-mounting grilles for 8" loudspeakers. It has a depth of 4 1/4".

Features

• Support System Enables Enclosure Installation in Retrofit Ceiling Applications
• Mounting Ears Adjust Vertically to Accommodate Varying Ceiling Thickness
• Quick Mounting of Torsion-Spring and Surface-Mounting LoudspeakerGrilles

Specifications

• Dimensions: 11 3/4" x 10 1/8" x 4 1/4"
• Mounts Baffle: (T)51-8, (T)60-8(W), (T)61-8W, (T)62-8, 63-8, 67-8(W),68-8W, 170-8, G22-8, T610-8W, T710-8, T720-8A, M222(W), TM222W, P900,VP60-R
