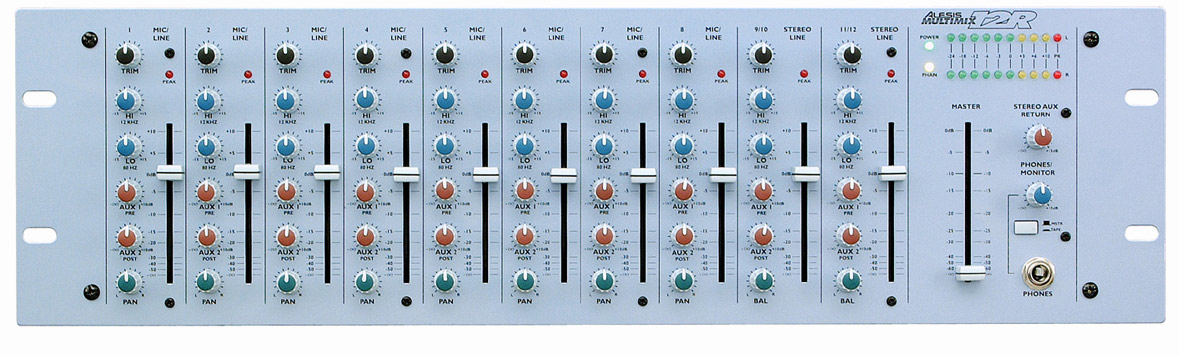

Alesis MultiMix 12R
12-Channel Rack-Mount Mixer with 8 Mic/Line and 2 Stereo In

OUR PART #:  MULTIMIX-12R

The Alesis MultiMix 12R is a high-quality, rack-mountable 12-input, stereo output audio mixer.
Learn More
Our Price: $299.00
List Price: $399.00
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Alesis MultiMix 12R
Qty:
In Stock

Similar Products

The Alesis MultiMix 12R is a high-quality, rack-mountable 12-input, stereo output audio mixer. It is designed to handle eight microphones, two stereo line inputs, and to route signals to and from external effect processing devices. As a basic, easy-to-understand mixer, it can be used in a wide variety of applications from sound reinforcement to multitrack recording. It may also be used as an accessory or submixer to a larger console.

Alesis MultiMix 12R Features:

  • Ultra-affordable 12-channel mixer in a 3RU rack
  • 8 high-gain mic/line (XLR and 1/4" balanced) inputs with phantom power, 2 stereo balanced 1/4" line inputs
  • 2 aux sends (pre- and post-fader), stereo aux return, 8 1/4" inserts, 2-track stereo RCA in and out
  • Separate 1/4" balanced main and monitor outs, front-panel headphone out
  • Pan control, peak indicator, and 60mm fader on each channel
  • 2-band high/ low shelving EQ per channel
  • 10-segment LED stereo meters

Control:

  • Front-panel (top down): 8 mic/line channels and 2 stereo channels with trim, 2-band EQ (high shelving at 12kHz, low shelving at 80Hz), aux send 1(pre-fader), aux send 2 (post-fader), pan/balance, and 60mm fader
  • Front-panel other: 60mm stereo master fader. Stereo aux return level. Headphone jack with level and master/tape switch. Stereo 10-segment LED meters. Power and phantom power LEDs

Connections:

  • All 1/4" TRS except as noted: Mic in x 8 (XLR), line in x 12, channel insert x 8, aux send x 2, stereo aux return, stereo main out, stereo monitorout, headphone out. Stereo tape in and master out (RCA)

Alesis MultiMix 12R Specifications:

  • Frequency response: 20Hz–50kHz ±0.5dB
  • Dynamic range: 108dB. Distortion: <0.005% THD+N (mic/line to L/R master out)
  • Maximum gain: 70dB (mic in to L/R master out)
  • Headroom: 24dB
  • Power: 120V AC internal transformer
  • Dimensions (HxWxD): 5.25" x 19" x 4.25"; 3U rackmount
  • Weight: 8 lbs.
