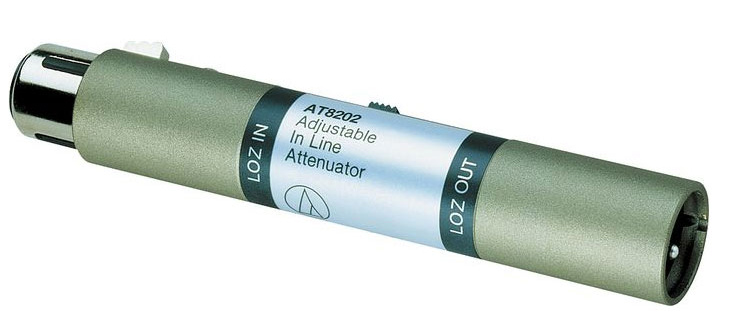

Audio-Technica AT8202 In-Line Attenuator with Selectable 10, 20, 30 dB Attenuation

The AT8202 from Audio-Technica is an adjustable in-line attenuator unit that's engineered to prevent balanced low-impedance microphones from overloading electronics which may have low- to mid-impedance inputs, particularly when used in high-SPL (sound pressure level) applications. It's intended to provide assurance of proper matching between the mic and the inputs of mixing consoles as well as portable recording devices, to block input overload of the electronics due to high-level signals. It's compatible for use in phantom power applications.

Features

• Prevents overload of sensitive input stages
• Provides -10 dB, -20 dB or -30 dB attenuation
• Compatible for use in phantom power applications
• Durable steel case provides optimum shielding from hum
• For use with balanced Lo-Z microphones
• Can be plugged directly into an XLRF-type chassis-mount connector

Specifications

• Input Impedance: 1000 Ω (-10 dB)
• Output Impedance: 200 Ω (-10 dB)
• Frequency Response: 20 Hz to 20,000 Hz
• Attenuation: -10 dB, -20 dB, -30 dB
• Input Connector: XLRF-type
• Output Connector: XLRM-type
• Weight: 2.8 oz. (80 g)
• Dimensions (L x Ø): 3.94" x 0.75" (100 x 19mm)
• Note: further information can be found within the "AT8202 Datasheet" located under the "Documentation" tab above.
