Atlas Sound APC-30T
Wide Angle Omni-Purpose Loudspeaker 30-W w/Xfmr. (25/70.7/100V)

OUR PART #:  APC-30T

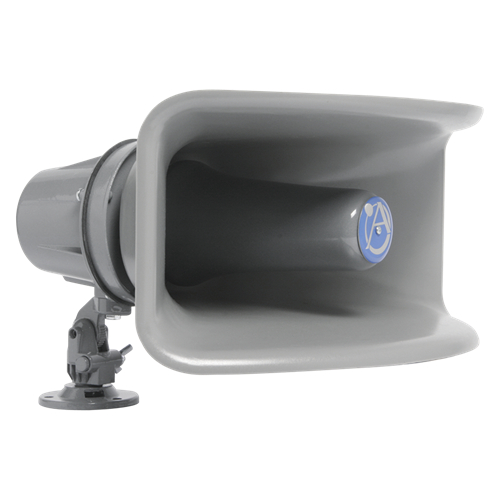

The Atlas Sound APC-30T is a high-power 30 watt loudspeaker with extended low frequency response. Unit is equipped with a wide-angle molded plastic bell for sound directivity.
Learn More
Our Price: $160.99
List Price: $201.99
You save 20%!
Write the first review.
Atlas Sound APC-30T
Qty:
In Stock

Related Products

The Atlas Sound APC-30T is a high-power 30 watt loudspeaker with extended low frequency response. Unit is equipped with a wide-angle molded plastic bell for sound directivity. Transformer includes a screwdriver-adjust power selection with a 45 ohm tap for intercom and talk-back use.

For mounting, the APC-30T features the Omni-Purpose bracket for vertical/horizontal positioning with provisions for surface/strap mounting to pillars and I-beams.

Finished in grey baked epoxy.

Atlas Sound APC-30T Features:

  • High-Powered Compression Driver Projects Superior Voice and Tone Signaling
  • Includes a 25, 70.7, 100V Transformer with a 45-Ohm Tap
  • One-Step Method of Adjusting Bell from Horizontal toVertical Positioning
  • Wide-Angle Sound Dispersion for Maximum Horizontal Pattern Coverage

Atlas Sound APC-30T Specifications:

  • Frequency Response: 300 Hz - 12 kHz
  • Power Taps: 2, 3.8, 7.5, 15, 30W @ 70.7V
  • Dispersion: 70° x 95°
  • Power Rating: 30 Watts
  • Sensitivity: 109dB
  • Dimenisons (HxWxD): 8-1/4" x 14-3/8" x12-7/8" (20.955 x 36.5125 x 32.7025 cm)
  • Shipping Weight: 9.00 lbs (4.08 kgs)
