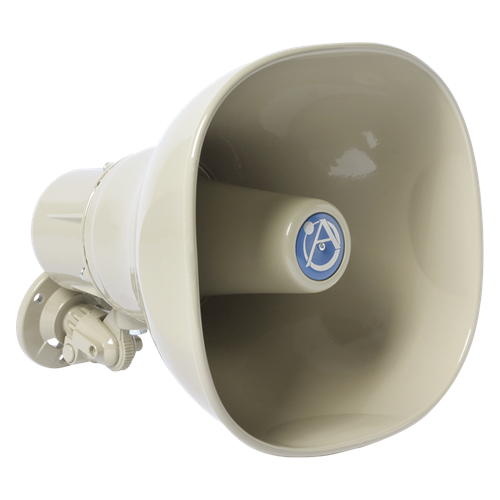

Atlas IED AP-15TC 15 Watt Horn Loudspeaker with 25/70/100V Transformer in Beige

The Atlas Sound AP-15TC is a double re-entrant loudspeakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.

The AP-15TC operates within a nominal frequency response range of 400 - 14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication and can run on 25/70 or 100V lines.

The trademarked squared-bell design signifies Atlas Sound quality and reliability. The Omni-Purpose mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.

AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in beige epoxy.

Atlas Sound AP-15TC Features:

• Beige Finish
• Environment Resistant for Outdoor and Indoor Use
• High-Efficiency Driver with Proven Performance Reliability
• Omni-Purpose Bracket for Precise Positioning
• Superior Intelligibility for Voice and Tone Signaling
• Transformer Equipped for Versatile 25, 70.7, or 100V Line Applications
• World Recognized for Quality and Dependability

Atlas Sound AP-15TC Specifications:

• Frequency Response: 400 Hz - 14 kHz
• Power Taps: 1, 2, 3.8, 7.5, 15 @ 70.7V
• Dispersion: 70°
• Sensitivity: 106dB
• Operating Range: -40° to 70° C
• Height: 8-3/4" (22.225 cm)
• Width: 7_7/8" (20.0025 cm)
• Depth: 9-5/16" (23.65502 cm)
• Shipping Weight: 5.00 lbs (2.27 kgs)
