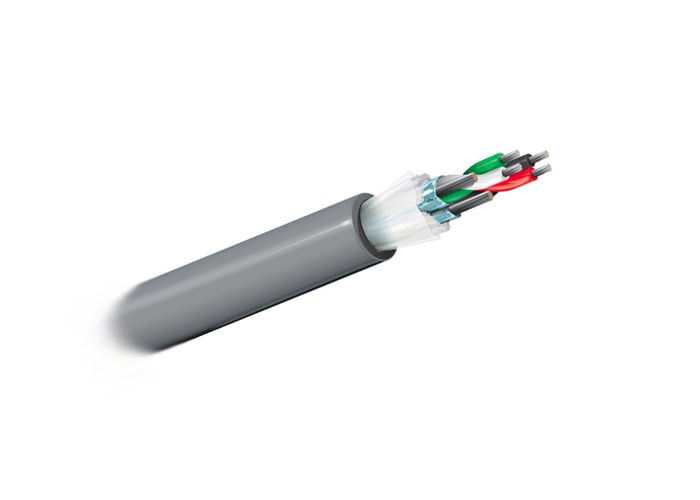

Belden 9729-500
Wire, AES/EBU, 24awg, 2 pr, 500ft

OUR PART #:  9729-500

24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, twisted pairs...
Learn More
Our Price: $621.75
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Belden 9729-500
Qty:
In Stock

Similar Products

24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, twisted pairs, individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Specifcations:

Conductor
AWG: 24
# Conductor: 2
Stranding: 7x32
Conductor Material: TC - Tinned Copper .024 in.

Insulation
Insulation Material:
Insulation Trade Name: Datalene®
Insulation material: FPE - Foam Polyethylene
DIA: .061 in.

Inner Shield
Inner Shield Material:
Inner Shield Trade Name: Beldfoil® (Z-Fold®)
Type: Tape
Inner Shield Material: Aluminum Foil-Polyester Tape
Coverage (,%): 100

Inner Shield Drain Wire AWG:24
Inner Shield Drain Wire Stranding: 7x32
Inner Shield Drain Wire Conductor Material: TC - Tinned Copper

Outer Jacket
Outer Jacket Material:
Outer Jacket Material: PVC - Polyvinyl Chloride
Overall Cabling
Overall Nominal Diameter: 0.266 in.

Pair
Pair Color Code Chart:
1 Black & Red
2 Black & White

Pair Lay Length & Direction:
Lay Length (in.): 1.100
Twists/ft. (twist/ft): 10.900

Click to download
