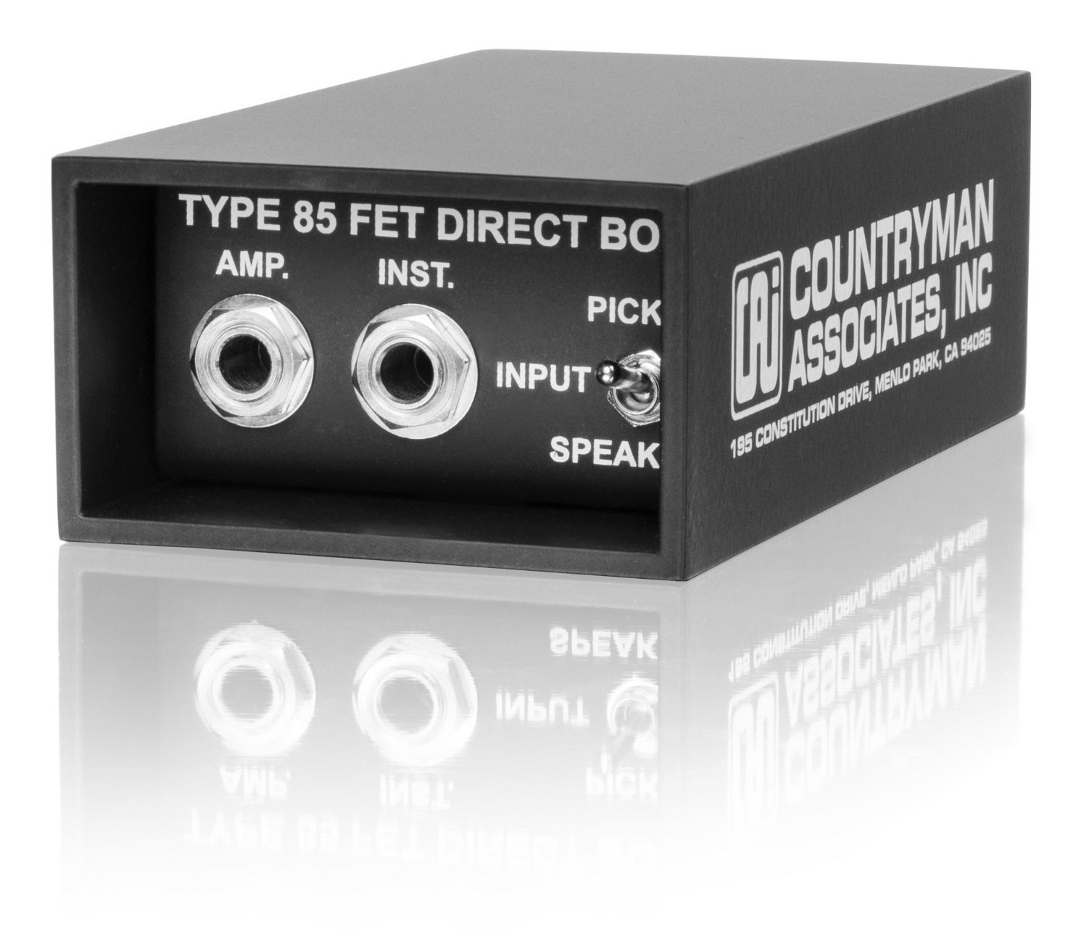

Countryman DT85
FET Direct Box

OUR PART #:  DT85

Countryman's DT85 provides the ultimate way to connect guitar pickups, contact mics or electric instruments to a recording or PA console without loss of audio quality.
Learn More
Our Price: $158.71
List Price: $238.65
You save 33%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Countryman DT85
Qty:
In Stock

Similar Products

Countryman's DT85 provides the ultimate way to connect guitar pickups, contact mics or electric instruments to a recording or PA console without loss of audio quality. Does not load the signal from your pickup, no loss of level or increased distortion. The case is made of indestructible extruded aluminum, recessed connectors and switches, battery or phantom power, internal pad for speaker bridging, true ground isolation, RF filtered.

What does it do?
The Type 85 connects any high impedance instrument pickup, even piezo pickups, to a balanced microphone (XLR type) input. It provides a strong, clean signal to the mix board without adding noise or distortion.

What doesn't it do?
It won't change the tone or volume you hear from your own amp like passive direct boxes. It won't add hiss, distortion or buzz like some active direct boxes. It won't break just when you need it. It won't develop a dead battery on stage because it runs on Phantom power.

Why does it sound so good?
The Type 85 doesn't use a cheap FET opamp. It uses only hand selected high quality discrete components woven into a single ended class A circuit much like the classic tube microphone preamp. The Type 85 has an incredibly smooth, sweet sound.

Why is it so hard to break?
Connectors and switches are recessed into a single piece extruded case with extra thick walls. You can actually drive a truck over a Type 85 without hurting it. Internal electronics are molded in a single epoxy block and fully protected against electrical damage. The input circuit can withstand 220V AC all day long and static spikes up to 20,000 volts!

Does it need a battery?
Most mixing consoles provide 48 volt Phantom power and the Type 85 will automatically use it. If you don't have Phantom power, the Type 85 will run from an internal 9V battery. An alkaline battery will last about 400 hours.

How does it eliminate buzz?
Hum and buzz are often caused by a connection between the mixer and ground at the guitar system. The Type 85 can always isolate ground, even when running on Phantom power. Most direct boxes can't do that.

Where are the roll off switches?
It doesn't have any. The Type 85 is designed to transfer the sound of your instrument to the mixing console, adding nothing and taking away nothing. Adjusting the frequency content of a sound source is an artistic decision best done at the mixing location where you can hear the results and easily make changes.

Countryman DT85 Specifications:

  • Input Resistance: Pickup mode: 10,000,000 ohms (10 times the input resistance of a typical guitar amplifier)
  • Speaker mode: 10k ohms
  • Input Capacitance: 60 Picofarads, equal to two feet of low capacitance guitar cable.
  • Maximum Input Level: Pickup mode: 5 Volts P-P
  • Speaker mode: 300 Volts P-P (Equal to 2,800 watts into 4 ohms)
  • Input Protection: 220 Volts RMS and 20,000 Volt static discharges.
  • Voltage Gain:
    • Pickup mode: -10dB
    • Speaker mode: -46 dB
  • Noise (shorted input): 149 dB SPL, 1 kHz at 1% T.H.D.
  • Frequency Response: 20Hz to 20kHz ┬▒ 1dB
  • Distortion:
    • 0.018% THD @ 1kHz and 1 VP-Pin
    • 0.08% IMD 10kHz/60Hz 1 VP-Pin
  • RF Filtering:
    • 250 kHz Low Pass on input
    • 30kHz Low Pass on output
  • Power Requirements: 48 V @ 0.4 ma Phantom or 9V battery
  • Dimensions: 1.75" x 3" x 5" (45 x 77 x 127 mm)
  • Weight: 18.5 oz. (0.52 kg)
