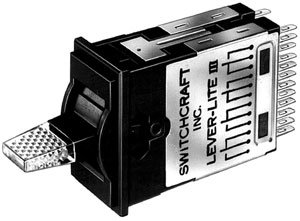

Switchcraft 84324L
Three-Position Lever Switch.

OUR PART #:  84324L

Lever-Lite® III illuminated lever switches are designed for front-of-panel mounting, relamping, terminating, color changes and removal.
Learn More
Our Price: $151.20
List Price: $223.95
You save 32%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Switchcraft 84324L
Qty:
In Stock

Similar Products

Lever-Lite® III illuminated lever switches are designed for front-of-panel mounting, relamping, terminating, color changes and removal. A minimum of time is required to install singly, in rows, or in matrix arrays to meet a wide variety of switching applications. 2- and 3-position types are available in non-locking functions. Mounts on .875 inches (22.22 mm) horizontal centers or 1.5 inches (38.1 mm) vertical centers. Talk-listen (intercom) function is also available. Illumination technique provides a different color for each lever position.

A single internal lamp provides brilliant lever lighting in any color required. Standard factory installed color filters are provided as follows: Series 84000, Multi-Color Illumination 2-position - Amber (neutral position); green (down position). 3-position - Red (up position); amber (neutral position); green (down position). One-color (all positions) and non-illuminated switches can be specified on special order. Switchcraft will install filters for non-standard illumination requirements at nominal cost on special order.

Specifications:

  • Mounting/Retaining Clips and Covers: Steel, plated.
  • Contact Ratings: Welded cross bar palladium contacts rated at 1A, 200W maximum AC non-inductive load are standard.
  • Springs: Copper alloy, plated.
  • Lamp Terminals: Copper alloy, plated.
  • Lamp Socket: Zinc, plated.
  • Terminals: Copper alloy, plated, straight solder lugs.
  • Housing, Escutcheon, Knob, Actuator and Switching Stacks Insulation: Molded plastic.
  • Temperature Range: -22°F to 158°F (-30°C to +70°C).
  • Dielectric Strength: 1 kV DC.
  • Leakage Resistance: 1,000 M(omega) or greater.
