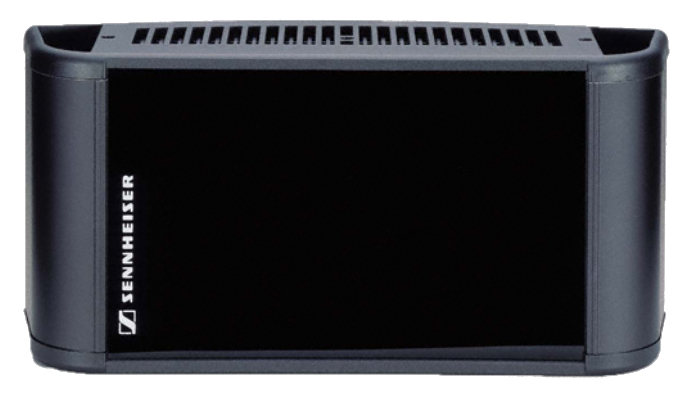

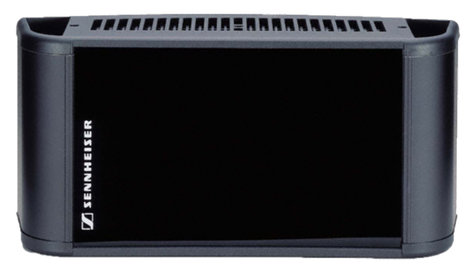

Sennheiser SZI 1015
IR Emitter Panel in Black

OUR PART #:  SZI1015

The Sennheiser SZI 1015 is a 2-watt emitter with a coverage area of up to 4,000 sq.ft. The emitter is switched on and off automatically by the modulator’s RF carrier.
Learn More
Our Price: $899.95
List Price: $1,129.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Sennheiser SZI 1015
Qty:
In Stock

Similar Products

The Sennheiser SZI 1015 is a 2-watt emitter with a coverage area of up to 4,000 sq.ft. The emitter is switched on and off automatically by the modulator’s RF carrier. The RF signal from the modulator can be daisy-chained via BNC sockets. A barrier strip with RF modulated and DC inputs and outputs is connected in parallel. The emitter has a 5/8" thread and comes with a 3/8" and 1/2" adapter. It can therefore, easily be mounted to various attachments.

Sennheiser SZI 1015 Features:

  • 2-Watt infrared radiator with integrated modulator with 30 kHz – 6 MHz range
  • RF output (BNC socket and barrier strip) for connecting additional radiators
  • Automatic on/off function
  • 5/8" and 3/8" threads
  • Compatibility with existing installations
  • Easy installation
  • Controlled from a single location
  • Versatile installations
  • Available in black and white
  • Two SZI 1015s can be remotely powered by SI 1015/NT

Sennheiser SZI 1015 Specifications:

  • IR diodes:  72
  • Average radiating power:  2 W
  • Max. coverage area:  4,000 sq. ft.
  • Carrier frequency range:  30 kHz – 6 MHz
  • RF input:  50 mV–3 V, approx. 5 k
  • Inputs/outputs:  BNC sockets/barrier strip
  • Threshold voltage for automatic on/off function:  50 mV
  • Operating voltage:  25–30 V DC (via NT 1015 or SI1015)
  • Current consumption operation:  0.7 A at 25 V, stand-by: max. 60 mA
  • Dimensions:  9.84" w x 3.94" d x 3.15" h
  • Weight approx.:  3 lbs.
