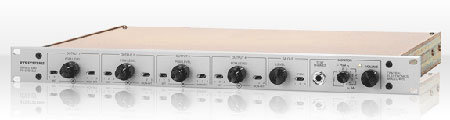

RTS 4010-RTS Central IFB Electronics Station for 4 IFBs

Central IFB electronics station. Contains all necessary control functions and electronics including line power, to provide the active link between the 4001, 4002 and 4003 control stations and the 4030 and IFB-325 user stations.

Specifications:

• Frequency Response 30 Hz to 16 kHz: +1, -2 dB
• Noise Interrupt channel: -73 dBu
• Non-interrupt channel: -83 dBu
• Total Harmonic Distortion: 0.5%
• Nominal Input Level:
  • Microphone @ line level: -10 dBu/input Z=2kohms
  • Program: 0 dBu/input Z=2kohms
• Nominal Output Level:
  • To User Stations: -8 dBu/unbalanced, Z=10ohms
  • To SA amplifier: -5 dBu/balanced, Z=800ohms
• Crosstalk:
  • From other program inputs: -67 dBu
  • Between left & right channels: -64 dBu
• Mains Power Consumption 120 VAC, (240 VAC version available), 50/60 Hz: 45 volt-amps
• Dimensions: 1.72" (43.7mm) high, 19" (483mm) wide, 15.6" (395mm) deep
• Weight: 10.4 lbs. (4.7kg)
