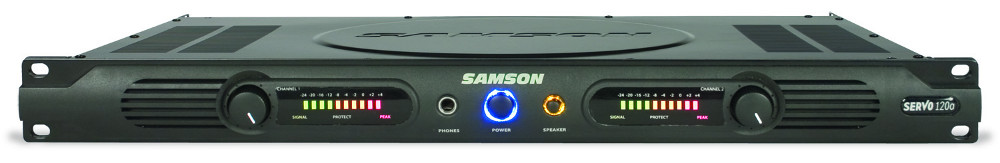

Samson Servo 120a
Stereo Power Amplifier, 60 Watts Per Channel at 4 Ohms

OUR PART #  SERVO120A

Our Price: $199.99
List Price: $249.99
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Samson Servo 120a is ideal for powering near field monitors or installation sound and provides you with "reference-class" audio performance and reliability in a compact package. This single rack space stereo power amplifier delivers 60 Watts of power per channel into 4 Ohms or 120 Watts into 8 Ohms in bridge mode. The intuitive front panel offers controls and displays that include a power switch, independent left and right-channel input level controls, 10-segment LED meters, a protection LED and a convenient headphone jack and speaker on/off switch for private cue monitoring. Perfect for the recording studio, powering public address systems, onstage monitoring and home theater applications, the 120a's bipolar design and toroidal transformer power supply ensure reliability. The convection cooling design also means there is no fan, so you get an unbelievably quiet performance from this remarkable power amp. With such versatility, the Servo 120a will provide seamless performance in any number of applications, and with the 3-year warranty from Samson, you will get years of worry free operation from this amplifier.

Samson Servo 120a Features:

  • Single-space 19" rackmount servo controlled power amplifier
  • 60 watts per side at 4 ohms stereo
  • 120 watts at 8 ohms (bridged mono)
  • 1/4" balanced phone jack and RCA inputs
  • Bi-polar design and toroidal transformer power supply
  • Individual left and right level controls
  • 10-segment, 3-color LED meters
  • Convection-cooled design
  • Headphone jack with speaker output mute
  • 3-Year Warranty from Samson

Samson Servo 120a Specifications:

  • Rated Output Power, per channel (@ 1 kHz):
    • Stereo Mode:
      • 4 Ohms, <0.05% THD+N:  60 W
      • 4 Ohms, 1% THD+N:  80 W
      • 8 Ohms, <0.05% THD+N:  50 W
      • 8 Ohms, 1% THD+N:  55 W
    • Bridge Mode:
      • 8 Ohms, <0.05% THD+N:  120 W
      • 8 Ohms, 1% THD+N:  150 W
  • Typical Distortion, per channel THD+N (80 kHz LPF @ 1kHz rated output power):  0.01%
  • IMD (SMPTE 4:1, 60 Hz & 7 kHz @ rated output power):  0.03%
  • Signal To Noise Ratio (22 Hz - 22 kHz bandwidth @ 1dB below rated output power):  105 dB
  • Frequency Response: 10 Hz - 20 kHz +0, -0.5 dB,3 Hz - 65 kHz, +0, -3.0 dB
  • Input Sensitivity: -10dBv on the RCA inputs, +4dBu on the 1/4" inputs to achieve rated power. (Level control set to maximum)
  • Crosstalk (adjacent channels): -75 dB, 1 kHz
  • Output DC Offset Voltage: +/- 50 mV, DCServo Controlled
  • Headphone: Output Level 400 mW (into 100Ohms @ 1% THD+N)
  • Dimensions (WxDxH): 19" x 11.5" x 1.75"
  • Weight: 15.4 lbs (7 kg)

Samson Servo 120a
Stereo Power Amplifier, 60 Watts Per Channel at 4 Ohms

OUR PART #  SERVO120A

Product Information:

The Samson Servo 120a is ideal for powering near field monitors or installation sound and provides you with "reference-class" audio performance and reliability in a compact package. This single rack space stereo power amplifier delivers 60 Watts of power per channel into 4 Ohms or 120 Watts into 8 Ohms in bridge mode. The intuitive front panel offers controls and displays that include a power switch, independent left and right-channel input level controls, 10-segment LED meters, a protection LED and a convenient headphone jack and speaker on/off switch for private cue monitoring. Perfect for the recording studio, powering public address systems, onstage monitoring and home theater applications, the 120a's bipolar design and toroidal transformer power supply ensure reliability. The convection cooling design also means there is no fan, so you get an unbelievably quiet performance from this remarkable power amp. With such versatility, the Servo 120a will provide seamless performance in any number of applications, and with the 3-year warranty from Samson, you will get years of worry free operation from this amplifier.

Samson Servo 120a Features:

  • Single-space 19" rackmount servo controlled power amplifier
  • 60 watts per side at 4 ohms stereo
  • 120 watts at 8 ohms (bridged mono)
  • 1/4" balanced phone jack and RCA inputs
  • Bi-polar design and toroidal transformer power supply
  • Individual left and right level controls
  • 10-segment, 3-color LED meters
  • Convection-cooled design
  • Headphone jack with speaker output mute
  • 3-Year Warranty from Samson

Samson Servo 120a Specifications:

  • Rated Output Power, per channel (@ 1 kHz):
    • Stereo Mode:
      • 4 Ohms, <0.05% THD+N:  60 W
      • 4 Ohms, 1% THD+N:  80 W
      • 8 Ohms, <0.05% THD+N:  50 W
      • 8 Ohms, 1% THD+N:  55 W
    • Bridge Mode:
      • 8 Ohms, <0.05% THD+N:  120 W
      • 8 Ohms, 1% THD+N:  150 W
  • Typical Distortion, per channel THD+N (80 kHz LPF @ 1kHz rated output power):  0.01%
  • IMD (SMPTE 4:1, 60 Hz & 7 kHz @ rated output power):  0.03%
  • Signal To Noise Ratio (22 Hz - 22 kHz bandwidth @ 1dB below rated output power):  105 dB
  • Frequency Response: 10 Hz - 20 kHz +0, -0.5 dB,3 Hz - 65 kHz, +0, -3.0 dB
  • Input Sensitivity: -10dBv on the RCA inputs, +4dBu on the 1/4" inputs to achieve rated power. (Level control set to maximum)
  • Crosstalk (adjacent channels): -75 dB, 1 kHz
  • Output DC Offset Voltage: +/- 50 mV, DCServo Controlled
  • Headphone: Output Level 400 mW (into 100Ohms @ 1% THD+N)
  • Dimensions (WxDxH): 19" x 11.5" x 1.75"
  • Weight: 15.4 lbs (7 kg)
