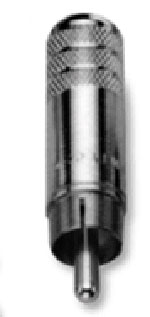

Switchcraft 3502AAU
Metal Solder-Gold

OUR PART #  3502AAU

Our Price: $2.06
List Price: $2.84
Save up to 40% when you order by quantity!
Buy 25 @ $1.99 ea.
Buy 50 @ $1.85 ea.
Buy 100 @ $1.70 ea.
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Phono plug with gold color and nickel handle, recommended for semi-permanent connections in audio and electronic applications.

Features:

  • Solder cup on center conductor for fast, easy termination.
  • Solid center conductor.
  • High quality appearance.
  • Larger cable clamp provides better strain relief for larger cables.
  • Longer cable clamp for easier plug assembly and more room for solder connection.
  • Knurl on the back of handle provides ergonomic gripping surface to tighten plug.
  • Longer handle for improved gripping surface and easy plug withdrawal fromjack.

Specifications:

  • Contact Resistance (typical *D.O.M.J.):< 0.020 ohms.
  • Dielectric Withstand Voltage: 500V AC (minimum).
  • Insulation Resistance @ 500V DC: 2,000 megohms (minimum).
  • Insulation Resistance (after MIL-STD-202 Salt Spray): 1,000 megohms (minimum).
  • Working Voltage: 250V AC, 140V DC.
  • Current Carry @ Working Voltage (typical *D.O.M.J.): 6.0 AMPS.
  • Insert/Withdrawal Force: *D.O.M.J..
  • Temperature Range: -40° to + 85° Centigrade.
  • U.L. Component Recognition File No.: E118169.
  • Life: Dependent On Mating Jack
  • Maximum Cable Size: .285 inch diameter.

Switchcraft 3502AAU
Metal Solder-Gold

OUR PART #  3502AAU

Product Information:

Phono plug with gold color and nickel handle, recommended for semi-permanent connections in audio and electronic applications.

Features:

  • Solder cup on center conductor for fast, easy termination.
  • Solid center conductor.
  • High quality appearance.
  • Larger cable clamp provides better strain relief for larger cables.
  • Longer cable clamp for easier plug assembly and more room for solder connection.
  • Knurl on the back of handle provides ergonomic gripping surface to tighten plug.
  • Longer handle for improved gripping surface and easy plug withdrawal fromjack.

Specifications:

  • Contact Resistance (typical *D.O.M.J.):< 0.020 ohms.
  • Dielectric Withstand Voltage: 500V AC (minimum).
  • Insulation Resistance @ 500V DC: 2,000 megohms (minimum).
  • Insulation Resistance (after MIL-STD-202 Salt Spray): 1,000 megohms (minimum).
  • Working Voltage: 250V AC, 140V DC.
  • Current Carry @ Working Voltage (typical *D.O.M.J.): 6.0 AMPS.
  • Insert/Withdrawal Force: *D.O.M.J..
  • Temperature Range: -40° to + 85° Centigrade.
  • U.L. Component Recognition File No.: E118169.
  • Life: Dependent On Mating Jack
  • Maximum Cable Size: .285 inch diameter.
