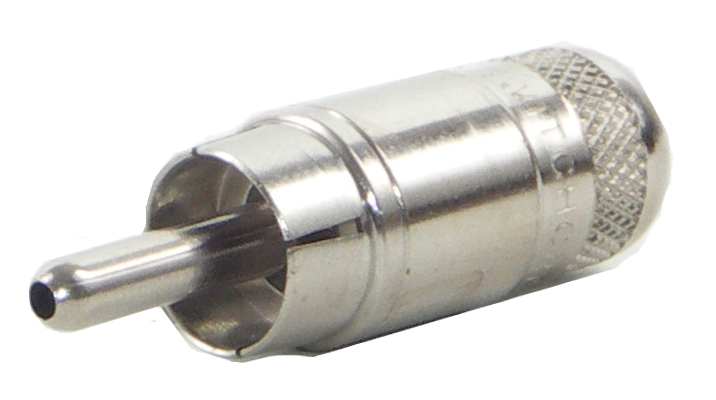

Switchcraft 3502
RCA/Phono Male Cable Plug, Solder Type, Shielded

OUR PART #  3502

Our Price: $1.56
List Price: $2.14
Save up to 40% when you order by quantity!
Buy 25 @ $1.51 ea.
Buy 50 @ $1.40 ea.
Buy 100 @ $1.29 ea.
(Low Price Guarantee)
In Stock

Phono Plug, 2-conductor shielded. Heavy duty cable clamp and removable handle; accepts cables up to .203 inch (5.16 mm) diameter Terminals may be crimped with pliers for temporary connections or soldered for permanent connections. Plug accommodates multiple jacks spaced on .438 inch (11.13 mm) centers. Nickel-plated copper alloy body and handle.

Features:

  • Solder cup on center conductor for fast, easy termination
  • Solid center conductor
  • High quality appearance
  • Larger cable clamp provides better strain relief for larger cables
  • Longer cable clamp for easier plug assembly and more room for solder connection
  • Knurl on the back of handle provides ergonomic gripping surface to tighten plug
  • Longer handle for improved gripping surface and easy plug withdrawal fromjack

Specifications:

  • Contact Resistance:< 0.020 ohms
  • Dielectric Withstand Voltage: 500V AC (minimum)
  • Insulation Resistance @ 500V DC: 2,000 megohms (minimum)
  • Insulation Resistance (after MIL-STD-202 Salt Spray): 1,000 megohms (minimum)
  • Working Voltage: 250V AC, 140V DC
  • Current Carry @ Working Voltage: 6.0 AMPS
  • Insert/Withdrawl Force: Dependent on Mating Jack
  • Temperature Range: -40° to +85° C
  • U.L. Component Recognition File No.: E118169
  • Life: Dependent on Mating Jack
  • Maximum Cable Size: .285 inch diameter

Materials:

  • Pin: Copper alloy; nickel-plated or gold-plated
  • Sleeve: Copper alloy; nickel-plated or gold-plated
  • Handle: Copper alloy; nickel-plated or black epoxy finished
  • Cable Clamp: C.R.S., electrotin-plated
  • Insulator: Rigid plastic

Switchcraft 3502
RCA/Phono Male Cable Plug, Solder Type, Shielded

OUR PART #  3502

Product Information:

Phono Plug, 2-conductor shielded. Heavy duty cable clamp and removable handle; accepts cables up to .203 inch (5.16 mm) diameter Terminals may be crimped with pliers for temporary connections or soldered for permanent connections. Plug accommodates multiple jacks spaced on .438 inch (11.13 mm) centers. Nickel-plated copper alloy body and handle.

Features:

  • Solder cup on center conductor for fast, easy termination
  • Solid center conductor
  • High quality appearance
  • Larger cable clamp provides better strain relief for larger cables
  • Longer cable clamp for easier plug assembly and more room for solder connection
  • Knurl on the back of handle provides ergonomic gripping surface to tighten plug
  • Longer handle for improved gripping surface and easy plug withdrawal fromjack

Specifications:

  • Contact Resistance:< 0.020 ohms
  • Dielectric Withstand Voltage: 500V AC (minimum)
  • Insulation Resistance @ 500V DC: 2,000 megohms (minimum)
  • Insulation Resistance (after MIL-STD-202 Salt Spray): 1,000 megohms (minimum)
  • Working Voltage: 250V AC, 140V DC
  • Current Carry @ Working Voltage: 6.0 AMPS
  • Insert/Withdrawl Force: Dependent on Mating Jack
  • Temperature Range: -40° to +85° C
  • U.L. Component Recognition File No.: E118169
  • Life: Dependent on Mating Jack
  • Maximum Cable Size: .285 inch diameter

Materials:

  • Pin: Copper alloy; nickel-plated or gold-plated
  • Sleeve: Copper alloy; nickel-plated or gold-plated
  • Handle: Copper alloy; nickel-plated or black epoxy finished
  • Cable Clamp: C.R.S., electrotin-plated
  • Insulator: Rigid plastic
