QSC CX502 2-Channel 300W at 8 Ohms Power Amplifier

OUR PART #: CX502 MFR #: CX502

Copied to clipboard

The CX Series is designed to meet the specialized needs of sound contractors. ...Read more

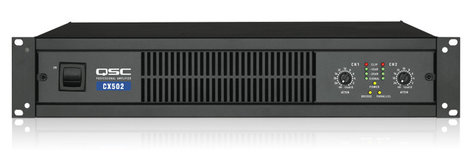

QSC CX502 2-Channel 300W At 8 Ohms Power Amplifier Image 1

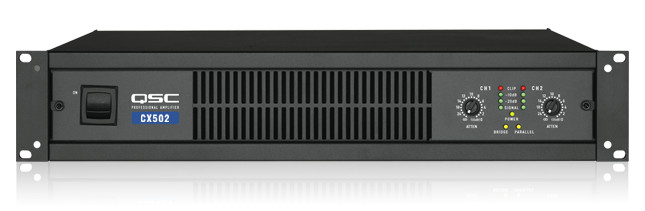

QSC CX502 2-Channel 300W At 8 Ohms Power Amplifier Image 2
QSC CX502 2-Channel 300W At 8 Ohms Power Amplifier
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The CX Series is designed to meet the specialized needs of sound contractors. The 2-channel CX502 300W power amplifier has been designed from the ground up, combining the exclusive QSC PowerLight™ technology with specific features to meet the requirements of fixed installations. With high-output power, versatile loading options, high thermal capacity and unmatched reliability, the CX Series is the perfect solution to any permanently installed sound system. The CX502 is equipped with many contractor-specific features including 1 dB detented gain controls for easily repeatable settings and a custom security cover for tamper-proof installations. Active Inrush Limiting eliminates AC inrush current, cutting the need for power sequencers. The CX502 also includes an HD-15 DataPort connector to interface with QSControl, QSC's computer-controlled audio system, that allows remote amplifier monitoring and control via a standard Ethernet network.

Features

  • 300W per channel at 8 Ω power amplifier
  • PowerWave technology delivers tighter bass and cleaner highs
  • 1 dB detented gain controls
  • HD-15 DataPort connector for QSControl computer control
  • XLR and detachable Euro-style input connectors

Specifications

  • Power Ratings:
    • 8 Ω, Stereo Mode, Both Channels Driven: 300W
    • 4 Ω, Stereo Mode, Both Channels Driven: 500W
    • 2 Ω, Stereo Mode, Both Channels Driven: 800W
    • 16 Ω, Bridged Mono Mode: 600W
    • 8 Ω, Bridged Mono Mode: 1100W
    • 4 Ω, Bridged Mono Mode: 1600W
  • Input Impedance: 6 kΩ unbalanced, 12 kΩ balanced
  • Input Connectors, each channel: 3-pin XLR and 3-pin detachable terminal blocks (1 each per channel)
  • Output Connectors, each channel: Safety-shrouded barrier strip
  • Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic and RF protection. Stable into reactive or mismatched loads
  • Load Protection: On/Off muting, DC-fault power supply shutdown
  • Dimensions (W x H x D): 19" x 3.5" x 14" (2 U)
  • Weight: 21 lbs. net
