Radio Design Labs RU-VSX4
4-Input Video Switcher

OUR PART #  RUVSX4

Our Price: $356.53
List Price: $476.93
You save 25%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

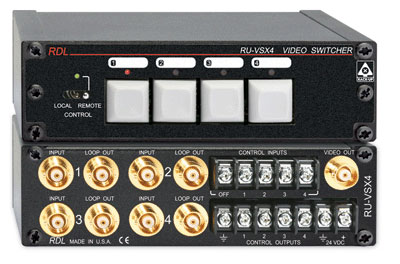

Radio Design Labs' RU-VSX4 is the ideal choice in most applications where four video signals need to be switched to a single output. The RU-VSX4 has two rear panel jacks for each of the four video bridging input stages. One jack is for the input signal; the other is a loop-through output of the source signal. If 75 ohm termination of the input signal is required, the terminator (provided) is plugged onto the LOOP OUT jack. The output video signal is 75 ohm back-terminated to provide unity gain into a 75 ohm terminated input.

The front panel features 4 high reliability keyboard style pushbuttons with LED indicators corresponding to each video input. The LED indicator shows which video source is active. If the button for an active source is pushed, all video sources are turned off until the next source selection. A front panel Local/Remote toggle switch activates either the front-panel buttons or a rear-panel connected remote control.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • Loop-Through Output From Each Input
  • Vertical Interval Switching
  • Local or Remote Control
  • 10 MHz Bandwidth, NTSC or PAL
  • Open-Collector Outputs
  • All Solid-State Switching
Rack Adapter for (3) RACK-UP Series Modules
Radio Design Labs RU-RA3R Rack Adapter for (3) RACK-UP Series Modules
The RU-RA3R from RDL rack mounts (3) RACK-UP modules in fixed or mobile installations. Metal RACK-UP series products drop into the chassis, slide into position and are secured by tightening two screws provided with the RACK-UP product ...
56.25 75.25 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
24 VDC 500mA Switching Power Supply
Radio Design Labs PS-24AS 24 VDC 500mA Switching Power Supply
Radio Design Labs' PS-24AS is a 24 VDC switching power supply with a North American AC plug, 500 mA, DC plug. Compatible with RDL's RU-SM16D (sold separately).Radio Design Labs PS-24AS Specifications: Input: 100 to 240 VAC ...
23.40 31.28 25
In Stock
Mounting Bracket for RACK-UP Series
Radio Design Labs RU-BR1 Mounting Bracket for RACK-UP Series
The RU-BR1 mounts an RDL 'RACK-UP' module above or below a horizontal surface.
33.83 39.92 15
Usually ships in 7-14 business days.
Need it sooner? Call us!
10.4" Rack Mount for 1 Rack-Up Series Product
Radio Design Labs RU-HRA1 10.4" Rack Mount for 1 Rack-Up Series Product
Radio Design Labs' Ru-HRA1 rack mounts 1 RACK-UP module or mounting frame for AMS accessories.  Fits 10.4" racks.Shipping Weight: 0.34 lbsPackage Dimensions: 2" x 2" x 12.25" (5.08 x 5.08 x 31.12 cm)
29.29 39.17 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
DIN Rail Adapter for Rack-Up
Radio Design Labs DRA-35R DIN Rail Adapter for Rack-Up
The DRA-35R provides DIN rail mounting for any RDL RACK-UP® or MAX RACK-UP module, allowing full access to the front and rear panels of the mounted modules. The DRA-35R attaches to a 35 mm DIN Rail.
17.27 20.38 15
Usually ships in 7-14 business days.
Need it sooner? Call us!

Radio Design Labs RU-VSX4
4-Input Video Switcher

OUR PART #  RUVSX4

Product Information:

Radio Design Labs' RU-VSX4 is the ideal choice in most applications where four video signals need to be switched to a single output. The RU-VSX4 has two rear panel jacks for each of the four video bridging input stages. One jack is for the input signal; the other is a loop-through output of the source signal. If 75 ohm termination of the input signal is required, the terminator (provided) is plugged onto the LOOP OUT jack. The output video signal is 75 ohm back-terminated to provide unity gain into a 75 ohm terminated input.

The front panel features 4 high reliability keyboard style pushbuttons with LED indicators corresponding to each video input. The LED indicator shows which video source is active. If the button for an active source is pushed, all video sources are turned off until the next source selection. A front panel Local/Remote toggle switch activates either the front-panel buttons or a rear-panel connected remote control.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • Loop-Through Output From Each Input
  • Vertical Interval Switching
  • Local or Remote Control
  • 10 MHz Bandwidth, NTSC or PAL
  • Open-Collector Outputs
  • All Solid-State Switching
