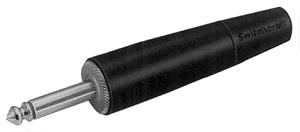

Switchcraft 187B
1/4" 2C High Power Plug

OUR PART #  187B

Our Price: $4.46
List Price: $6.13
Save up to 40% when you order by quantity!
Buy 25 @ $4.31 ea.
Buy 50 @ $4.00 ea.
Buy 100 @ $3.69 ea.
(Low Price Guarantee)
In Stock

The 187 series 1/4" phone plugs are similar to the Switchcraft® 184 plugs, except that they offer an attractive tapered handle with a snap-in flex relief.

Features:

  • Larger tip terminal to accommodate wire sizes up to 14 AWG.
  • Choice of Satin nickel or black finish.
  • Black flex relief bushing can be specified in three different cable diameter openings for maximum reliability of cable.
  • Plug is rated at 15A rms (maximum) for use with audio loudspeakerapplications.

Specifications:

  • Sleeve, Tip and Body: Nickel-plated copper alloy.
  • Terminals: Solder lugs: tinned copper alloy; Screw: tin-plated.
  • Handles: Die-cast zinc. Satin nickel finish.
  • Cable Relief Bushing: Black (thermoplastic elastomer).
  • Cable Relief Bushing diameter (inch): .3 to .33 (regular)

Switchcraft 187B
1/4" 2C High Power Plug

OUR PART #  187B

Product Information:

The 187 series 1/4" phone plugs are similar to the Switchcraft® 184 plugs, except that they offer an attractive tapered handle with a snap-in flex relief.

Features:

  • Larger tip terminal to accommodate wire sizes up to 14 AWG.
  • Choice of Satin nickel or black finish.
  • Black flex relief bushing can be specified in three different cable diameter openings for maximum reliability of cable.
  • Plug is rated at 15A rms (maximum) for use with audio loudspeakerapplications.

Specifications:

  • Sleeve, Tip and Body: Nickel-plated copper alloy.
  • Terminals: Solder lugs: tinned copper alloy; Screw: tin-plated.
  • Handles: Die-cast zinc. Satin nickel finish.
  • Cable Relief Bushing: Black (thermoplastic elastomer).
  • Cable Relief Bushing diameter (inch): .3 to .33 (regular)
