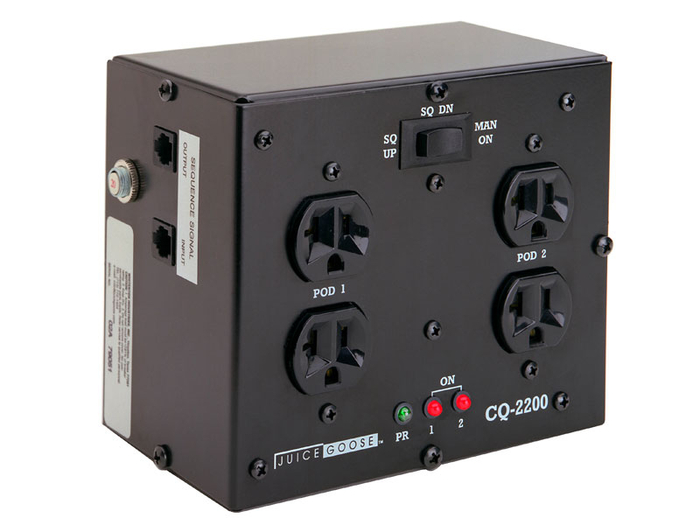

Juice Goose CQ 2200
Dual-Sequenced 20 Amp Power Distribution System

OUR PART #:  CQ2200

Some amplifiers may be able to operate in tandem on a single 20 amp circuit, but would overload the circuit if turned on at the same time.
Learn More
Our Price: $245.00
List Price: $289.00
You save 15%!
Write the first review.
Juice Goose CQ 2200
Qty:
In Stock

Related Products

Some amplifiers may be able to operate in tandem on a single 20 amp circuit, but would overload the circuit if turned on at the same time. The CQ-2200 stages the turn-on, thereby reducing the required electric power service.

For smaller systems, the CQ-2200 can act as a stand alone sequencer, activating front end equipment on the first POD and the amplification on the second.

Because the CQ-2200 can be controlled by a contact closure, installation is quick and requires no expensive accessories.

Juice Goose CQ 2200 Specifications:

  • Chassis: 16 AWG Steel
  • Dimensions (HxWxD): 5.5" x 6.4" x 3.75"
  • Weight: 5.0 lbs.
  • Circuit Breaker: Side Panel, 20A
  • Power Input: Hardwire with Crimp Tight Fast-on Terminals
  • Voltage: 120 VAC @ 60 HZ
  • Power Outputs:Four NEMA 5/20R, Sequenced
  • Sequence Events: Two
  • Relay Current Rating: 30 Amps
  • Power Line Filtration: None
  • Voltage Spike Protection: None
  • Monitor Features: Front Panel LEDs for Processor and Sequence Function
