Product Overview

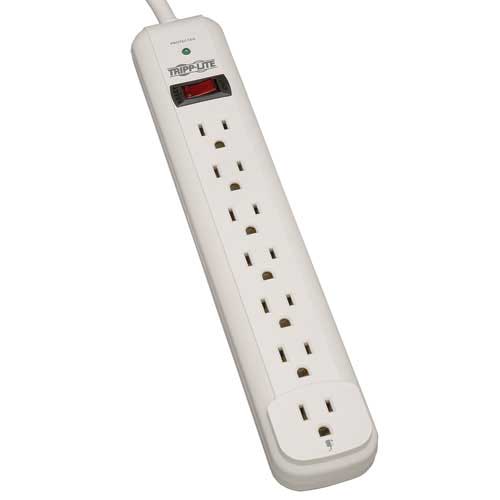

Tripp Lite's STRIKER offers economical AC surge suppression for protection of workstations, desktop PCs, telecom systems and other sensitive electronics. AC surge suppression shields connected equipment from damage and performance problems due to transient surges. STRIKER offers 7 AC outlets, 6-ft. cord and diagnostic LEDs to warn of wiring problems and suppressor damage. AC suppression rated at 1080 joules shields equipment from surges and line noise. Attractive gray housing with keyhole mounting tabs and 1 designated transformer plug outlet offer convenient protection of desktop computer equipment and accessories. $20,000 Ultimate Lifetime Insurance (USA & Canada only).
Ideal for any desktop, network or home computing application requiring AC line surge protection.
- PLUG/OUTLETS: Input: NEMA5-15P/Output: 7 x NEMA5-15R/6-ft. AC line cord
- ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA5-15R wall receptacle)
- FORMAT: Corded multi-outlet strip with 1 transformer-spaced outlet
- SUPPRESSION: AC: 150V RMS Clamping/1080 joules/400V UL1449 Let-through Rating
Features:
- 7 outlets
- 6-ft. cord
- Surge suppression rating: 1080 joules
- EMI/RFI noise filtering
- Can accommodate 1 transformer without blocking remaining outlets
- Diagnostic LED indicate protection present
- Keyhole supports for wall mounting
- $20,000 Ultimate Lifetime Insurance (USA and Canada Only) covers connected equipment
Specifications:
- OUTPUT
- Frequency compatibility 50 / 60 Hz
- Output watts 1800
- Circuit Breaker (amps) 15
- Outlet quantity / type 7 NEMA 5-15R
- Transformer accommodation Supports 1 large transformer plug accessory without covering remaining outlets; accepts up to 4 transformers total
- Outlet orientation Single row
- INPUT
- Nominal Input Voltage(s) Supported 120V AC
- Recommended Electrical Service 120V (110-125V)
- Input connection type NEMA 5-15P
- Input cord length (ft.) 6
- Input cord length (m) 1.83
- Input cord gauge, type 14 gauge, SJT
- Voltage compatibility (VAC) 120
- Maximum Surge Amps 72000
- LEDS ALARMS & SWITCHES
- Switches Combination AC circuit breaker and 2-position red illuminated on/off power switch
- Diagnostic LEDs Built-in LED confirms suppressor "protection present" (green) status
- SURGE / NOISE SUPPRESSION
- AC suppression joule rating 1080
- AC suppression response time < 1 ns
- Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- Clamping voltage (RMS) 150
- UL1449 let through rating 400V
- EMI / RFI filtering Up to 20 dB
- DATALINE SURGE SUPPRESSION
- Cable (Coax) Protection No
- Network (Ethernet) Protection No
- PHYSICAL
- Unit Dimensions (HWD/in) 1.32 x 2.05 x 11.69
- Unit Dimensions (HWD/cm) 3.35 x 5.21 x 29.69
- Unit weight (lbs) 1.17
- Unit weight (kg) 0.53
- Material of construction Plastic
- Integrated keyhole mounting tabs Keyhole mounting tabs enable wall mounting
- AC line cord color Gray
- Style Strip
- Outlets center to center measurement Distance between standard outlets = 29mm; Distance between last standard outlet and transformer outlet = 33mm
- Keyhole slot center to center measurement Distance between slots = 151mm; Distance between slot height = 24mm
- CERTIFICATIONS
- UL1449 3rd Edition (AC Suppression) UL1449 3rd Edition
- NOM (Mexico) NOM
- UL1363 (Power Tap) UL1363
- cUL / CSA (Canada) cUL
- Approvals Exceeds IEEE 587 category A&B specifications
- WARRANTY
- Product Warranty Period (Worldwide) Lifetime limited warranty
- Connected Equipment Insurance (U.S., Canada & Puerto Rico) $20,000 Ultimate Lifetime Insurance
